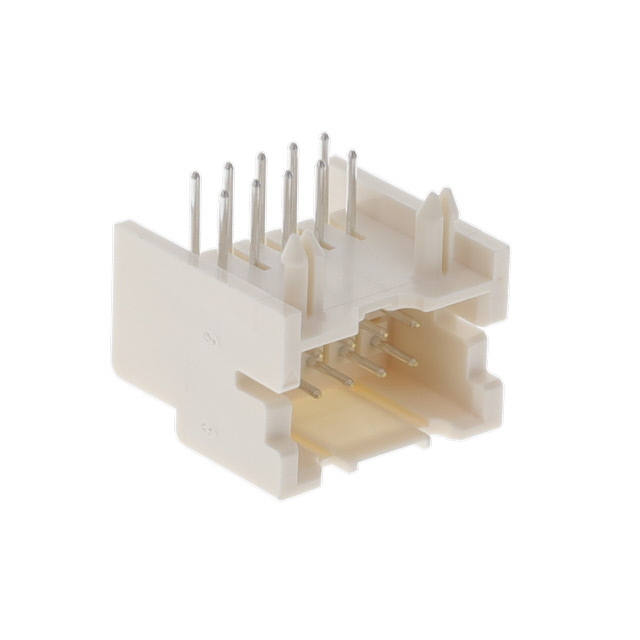

Same model may have multiple batches, images only for reference.

S10B-XADSS-N

Name: S10B-XADSS-N
Brand: JST Sales America Inc.
SKU: 1481278
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	S10B-XADSS-N
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Connector Header Through Hole, Right Angle 10 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	JST Sales America Inc.
Series	XAD
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.476" (12.10mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S10B-XAD
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1481278-S10B-XADSS-N
Ultra Librarian 3D Model	Ultra Librarian S10B-XADSS-N CAD Model
