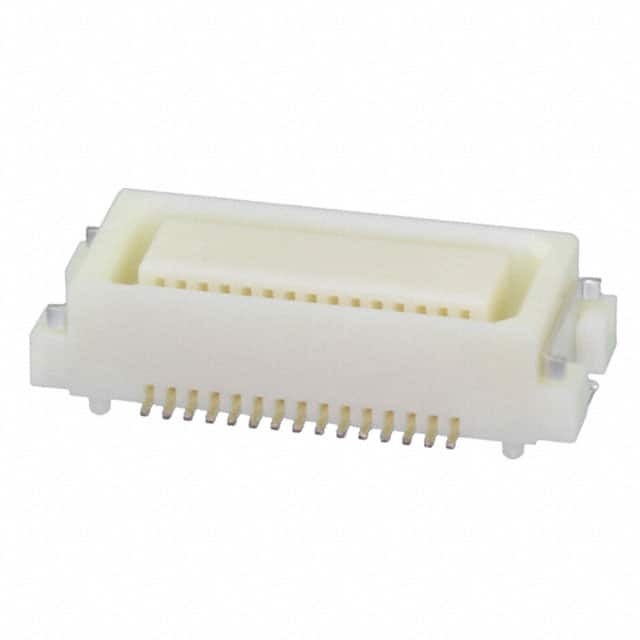

DF17(3.0H)-30DS-0.5V(57) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF17(3.0H)-30DS-0.5V(57)

Part No DF17(3.0H)-30DS-0.5V(57)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 30POS SMD GOLD / 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF17
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Mated Stacking Heights 4mm
Height Above Board 0.118" (3.00mm)
Base Product Number DF17
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -DF17(3.0H)-30DS-0.5V(57),*DF17(3.0H)-30DS-0.5V(57)CT-ND,-DF17(3.0H)-30DS-0.5V(57)DKR,H124579CT,H124579DKR,*DF17(3.0H)-30DS-0.5V(57)DKR-ND,-DF17(3.0H)-30DS-0.5V(57)-ND,683-0268-0-57,*DF17(3.0H)-30DS-0.5V(57),DF17(3.0H)-30DS-0.5V(57)-ND,H124579TR,*DF17(3.0H)-30DS-0.5V(57)-ND,-DF17(3.0H)-30DS-0.5V(57)CT
Standard Package 1,000
Win Source Part Number 997166-DF17(3.0H)-30DS-0.5V(57)
Ultra Librarian 3D Model Ultra Librarian DF17(3.0H)-30DS-0.5V(57) CAD Model

Description

The Hirose Electric Co Ltd DF17(3.0H)-30DS-0.5V(57) is a rectangular connector that belongs to the category of arrays, edge type, mezzanine (board to board).

  • Category: Arrays, Edge Type, Mezzanine (Board to Board)
  • Type: Custom
  • Positions: 30
  • Pitch: 0.020" (0.50mm)
