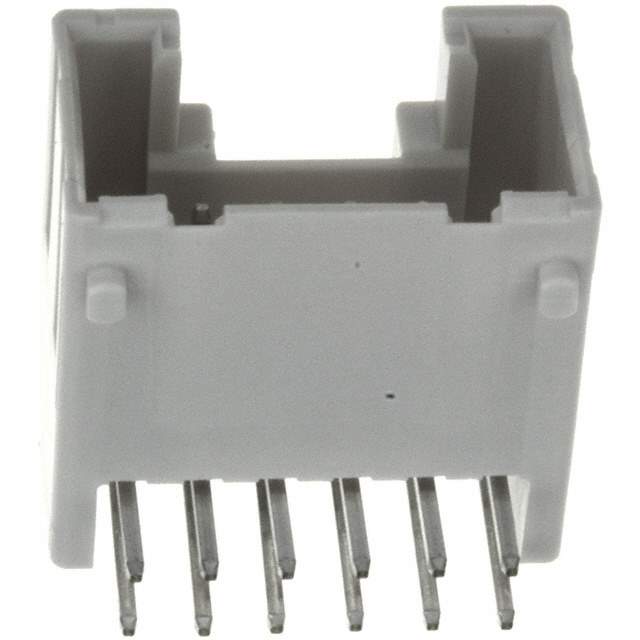

S12B-PUDSS-1(LF)(SN) Real Image1 S12B-PUDSS-1(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.
S12B-PUDSS-1(LF)(SN) Real Image1 S12B-PUDSS-1(LF)(SN) Real Image2
S12B-PUDSS-1(LF)(SN) Real Image1 S12B-PUDSS-1(LF)(SN) Real Image2
Same model may have multiple batches, images only for reference.

S12B-PUDSS-1(LF)(SN)

Part No S12B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2MM / Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S12B-PUD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2487,S12BPUDSS1LFSN
Standard Package 2,310
Win Source Part Number 1175995-S12B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S12B-PUDSS-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. PUD connector is a rectangular connector that is designed for board to cable/wire applications.

  • Positions: 12
  • Type: Male pin header
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Win Source Part Number: 1175995-S12B-PUDSS-1(LF)(SN)
