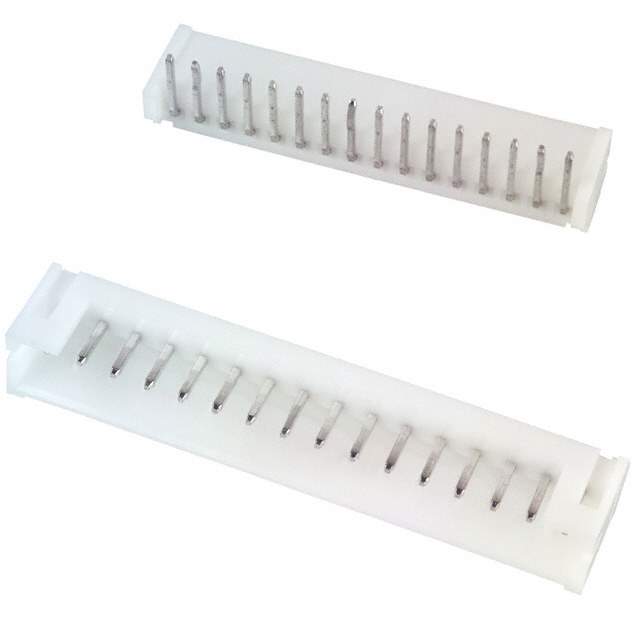

S16B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S16B-PH-K-S(LF)(SN)

Part No S16B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2MM / Connector Header Through Hole, Right Angle 16 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 16
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Base Product Number S16B-PH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names (D)S16B-PH-K-S(LF)(SN),(W)S16B-PH-K-S(LF)(SN),455-1733,S16BPHKSLFSN
Standard Package 200
Win Source Part Number 1206940-S16B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S16B-PH-K-S(LF)(SN) CAD Model

Description

The PH series header male pin connector from JST Sales America Inc. is a 16-position rectangular connector with a pitch of 2.00mm.

  • Positions: 16
  • Pitch: 2.00mm
  • Fastening Type: Detent lock
  • Shrouded: 4 walls
  • Contact Material: Brass
  • Voltage Rating: 100V
  • Temperature Range: -25°C to 85°C
  • Current Rating: 2A
  • Material Flammability Rating: UL94 V-0
  • Applications: Board to cable/wire
  • Mounting Type: Through-hole and right-angle
  • Termination: Press-fit or solder
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Insulation Color: Natural
  • Package: Bulk
  • Standard Package: 200 units
