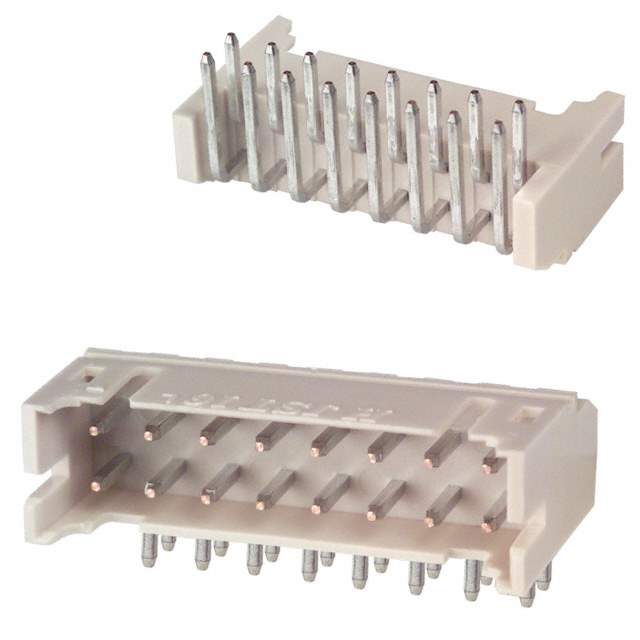

S16B-PHDSS(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S16B-PHDSS(LF)(SN)

Part No S16B-PHDSS(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PHD SIDE 16POS 2MM / Conn Shrouded Header (4 Sides) HDR 16 POS 2mm Solder RA Thru-Hole Box
Datasheet
S16B-PHDSS(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PHD
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.114" (2.90mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.197" (5.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 5mm
Win Source Part Number 793518-S16B-PHDSS(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name PHD
Introduction Date October 30, 2002
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian S16B-PHDSS(LF)(SN) CAD Model

Description

This JST Sales America Inc. connector is a header with 16 positions and a pitch of 0.079" (2.00mm).

  • Positions: 16
  • Pitch: 0.079" (2.00mm)
  • Shrouding: 4-wall
  • Contact Type: Male pin
  • Termination: Solder
  • Contact Finish - Mating: Tin
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Mounting: Through Hole, Right Angle
  • Categories: Connectors and Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Limited
