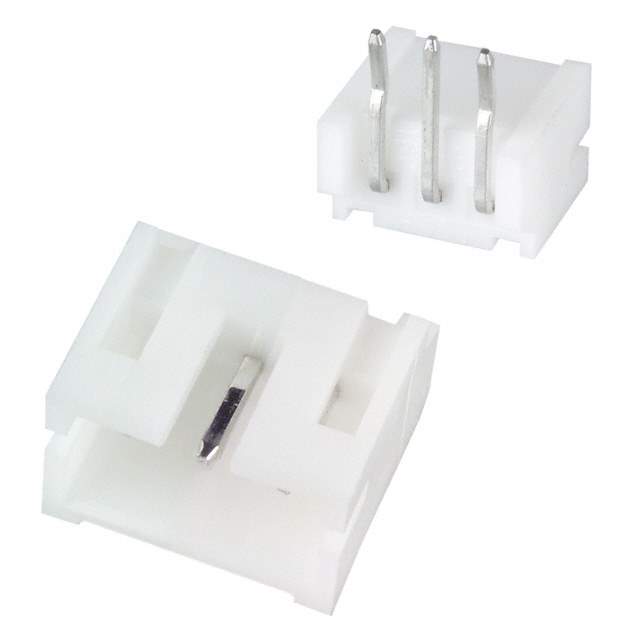

S3B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S3B-PH-K-S(LF)(SN)

Part No S3B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH SIDE 3POS 2MM
Datasheet
S3B-PH-K-S(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 4.8mm
Win Source Part Number 1093659-S3B-PH-K-S(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S3B-PH-K-S(LF)(SN) CAD Model

Description

The 1093659-S3B-PH-K-S(LF)(SN) is a male pin header connector with 3 positions manufactured by JST Sales America Inc..

  • Number of Positions: 3
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mounting Style: Through-Hole, Right Angle
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Shrouded: Yes, 4 Walls
