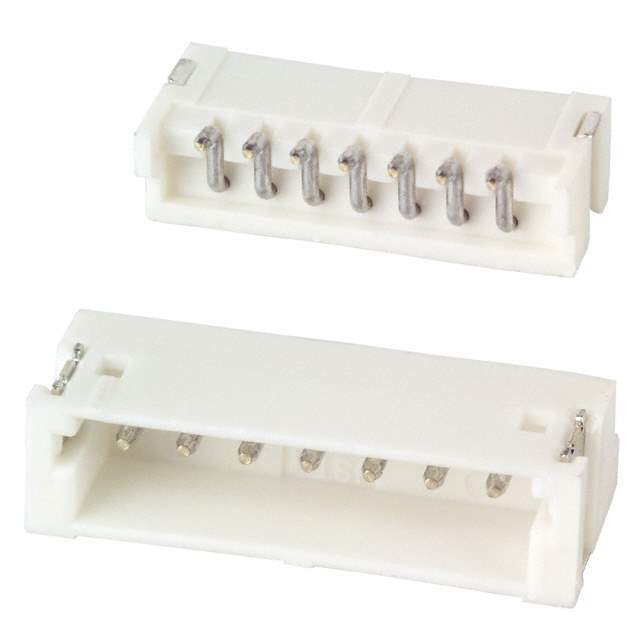

The JST Sales America Inc. 741473-S7B-ZR-SM3A-TF is a surface mount, right angle header connector with a detent lock fastening type.

• Contact Shape: Circular
• Shrouding: 4 walls
• Connector Type: male pin
• Contact Material: brass
• Voltage Rating: 50V
• Current Rating: 1A
• Pitch-Mating: 0.059 inches (1.50mm)
• Contact Finish-Mating and Post: tin-lead
• Insulation Material: polyamide (PA46), nylon 4/6, glass-filled
• Insulation Color: natural
• Connector Style: board to cable/wire
• Termination: solder
• Positions Loaded: all
• Operating Temperature Range: -25°C to 85°C
• Part Status: obsolete (EOL)
• Estimated EOL Date: obsolete
• Family Name: S7B
• RoHS State: request verification
• Introduction Date: July 11, 2001
• ECCN: EAR99
• Insulation Height: 0.146 inches (3.71mm)
