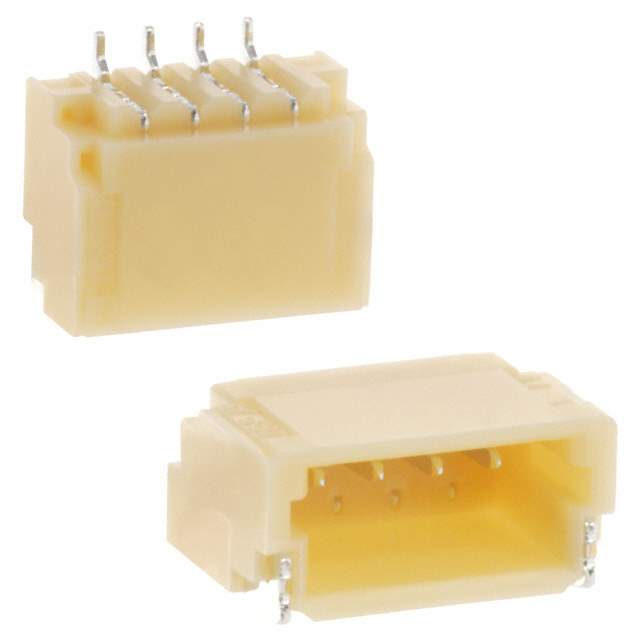

SM04B-SRSS-TB Real Image
Same model may have multiple batches, images only for reference.

SM04B-SRSS-TB

Part No SM04B-SRSS-TB
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Cut Tape (CT)
Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759361-SM04B-SRSS-TB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM04B-SRSS-TB CAD Model

Description

The JST Sales America Inc. SM04B-SRSS-TB is a 4-position header connector with a shrouded 4-wall design.

  • Pitch-Mating: 0.039” (1.00mm)
  • Mounting: SMT right-angle
  • Material: Copper alloy
  • Voltage Rating: 50V
  • Temperature Range: -25°C to 85°C
  • Termination: Soldering
  • Popularity: High
  • Common Use: Commonly used
