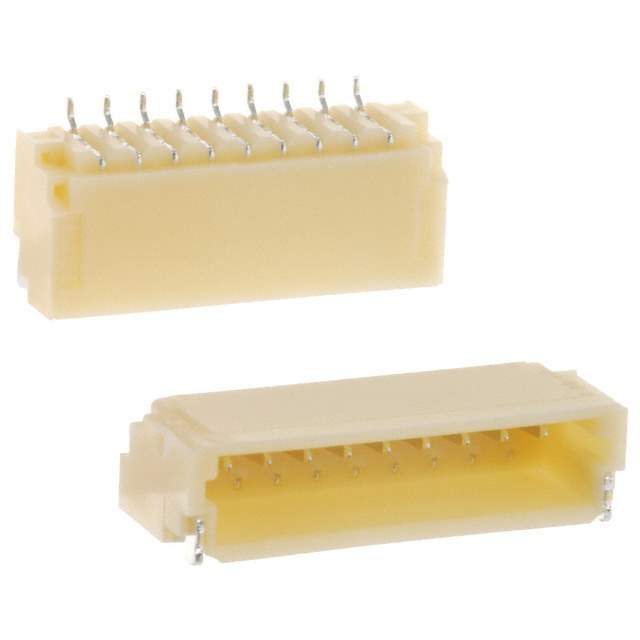

SM09B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM09B-SRSS-TB(LF)(SN)

Part No SM09B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 9POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.7A
Voltage Rating 50V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 756657-SM09B-SRSS-TB(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM09B-SRSS-TB(LF)(SN) CAD Model

Description

The SM09B-SRSS-TB(LF)(SN) is a connector electronic component manufactured by JST Sales America Inc.

  • Win Source Part Number: 756657-SM09B-SRSS-TB(LF)(SN)
  • Type: Header Connector
  • Positions: 9
  • Mounting Style: Right-Angle SMT
  • Category: Connectors and Interconnects
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Insulation Material: Polyamide (PA), Nylon
  • Pitch-Mating: 0.039" (1.00mm)
  • Contact Finish: Tin
  • Contact Shape: Square
  • Temperature Range: -25°C ~ 85°C
