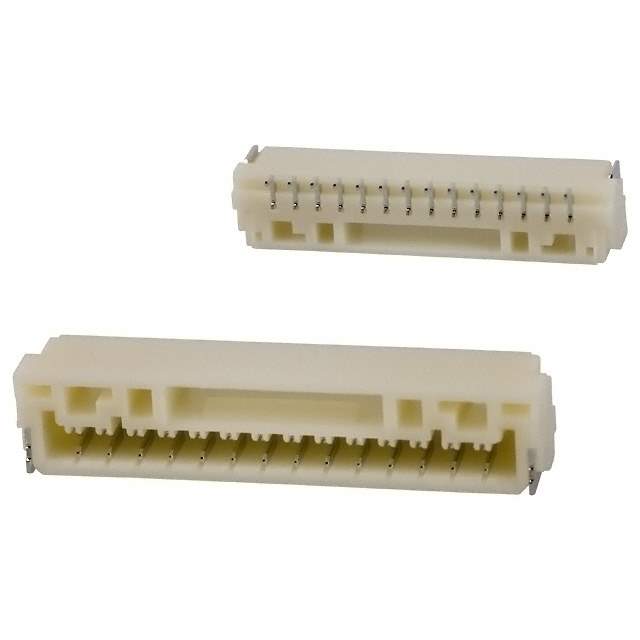

The SM14B-GHS-TB is a 1.25mm pitch, 14-circuit, SMT (Surface Mount Technology) header from JST's GHS series of wire-to-board connectors. These connectors are designed for high-density mounting and offer a secure and reliable connection in a compact form factor. The TB in the part number indicates that the connector is supplied on tape and reel for automated assembly processes.

Applications:

• Consumer electronics
• Industrial control equipment
• Medical devices
• Security systems
• Robotics

Features:

• 1.25mm pitch
• 14 circuits
• Surface mount design
• GHS series
• Tape and reel packaging

Benefits:

• High-density mounting allows for compact designs
• Secure and reliable connection ensures signal integrity
• Automated assembly reduces manufacturing costs
• Robust design for demanding applications
• Meets industry standards for safety and performance

Additional Details:

The SM14B-GHS-TB connector is made from high-quality materials to ensure durability and long-term reliability. The housing is typically made from a heat-resistant resin that can withstand the high temperatures associated with reflow soldering. The contacts are made from a copper alloy with a tin plating to provide excellent conductivity and corrosion resistance. The GHS series connectors are designed to mate with JST's GH series crimp style housings and terminals. The connector is RoHS compliant, ensuring it meets environmental regulations. The 1.25mm pitch allows for a very compact board layout, which is crucial in small electronic devices. Proper soldering techniques are required to ensure a reliable connection to the PCB; refer to JST's documentation for recommended soldering profiles.
