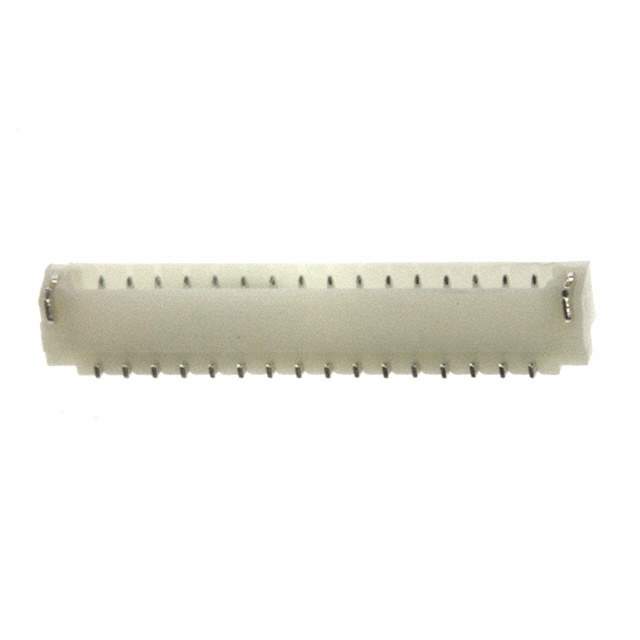

SM16B-SURS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM16B-SURS-TF(LF)(SN)

Part No SM16B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 16POS 0.8MM / Connector Header Surface Mount, Right Angle 16 position 0.031" (0.80mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SUR
Package Tape & Reel (TR)
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.031" (0.80mm)
Number of Positions 16
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.2A, 0.5A
Voltage Rating 30V
Base Product Number SM16B-SU
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2043-2,455-2043-1,SM16BSURSTFLFSN,455-2043-6
Standard Package 3,500
Win Source Part Number 993018-SM16B-SURS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM16B-SURS-TF(LF)(SN) CAD Model

Description

The SM16B-SURS-TF(LF)(SN) connector is a male header pin designed and manufactured by JST Sales America Inc.

  • Positions: 16
  • Pitch Mating: 0.031 inches
  • Voltage Rating: 30V
  • Termination: soldering
  • Mounting Type: surface mount, right angle
  • Shrouding: 4 wall
  • Contact Material: copper alloy
  • Insulation Material: polyamide (PA) or nylon
  • Insulation Color: natural
  • Contact Finish (Mating): tin
  • Temperature Range: -25°C to 85°C
