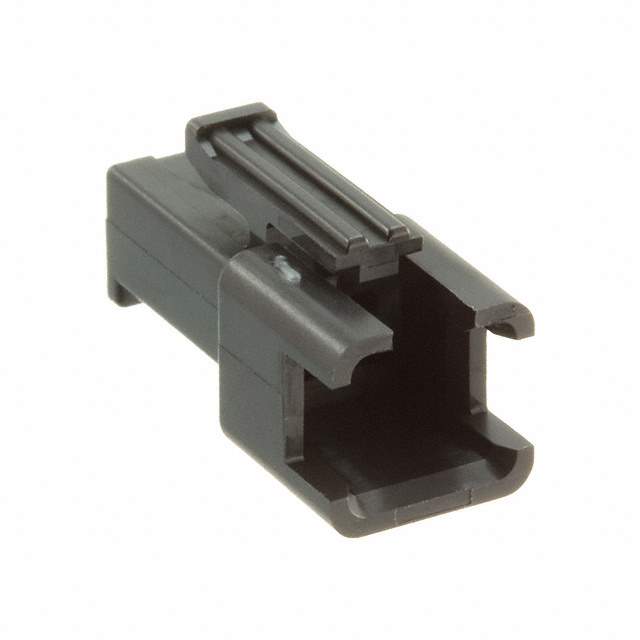

Same model may have multiple batches, images only for reference.

SMR-03V-B

Name: SMR-03V-B
Brand: JST Sales America Inc.
SKU: 1285283
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMR-03V-B
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	SM
Package	Bulk
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	3
Pitch	0.098" (2.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Note	Contacts Not Included
Base Product Number	SMR-03V
Other Names	455-2929
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1285283-SMR-03V-B
Ultra Librarian 3D Model	Ultra Librarian SMR-03V-B CAD Model

Alternative Products

Description

The SMR-03V-B is a black connector housing receptacle from JST Sales America Inc.

Color: black
Connector Type: rectangular
Fastening Type: latch lock
Contact Type: male pin
Positions: 3
Pitch: 0.098 inches (2.50mm)
Mounting Type: free hanging (in-line)
Connector Termination: crimp
Contacts Included: no
REACH: unaffected by REACH
ECCN: EAR99
