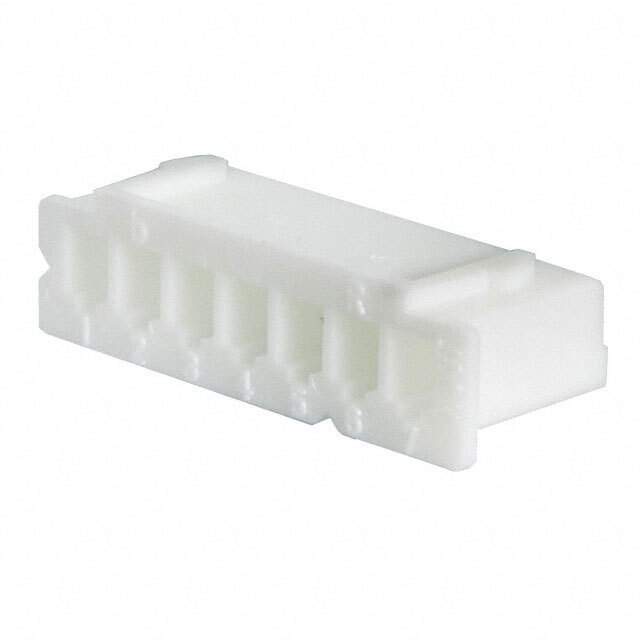

Same model may have multiple batches, images only for reference.

XHP-7

Name: XHP-7
Brand: JST Sales America Inc.
SKU: 1285270
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XHP-7
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	XH
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	7
Pitch	0.098" (2.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Natural
Note	Contacts Not Included
Base Product Number	XHP
Other Names	Q3192706,455-2269,XHP-7,(G)XHP-7,Q1785878,XHP7
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1285270-XHP-7
Ultra Librarian 3D Model	Ultra Librarian XHP-7 CAD Model

Alternative Products

Description

The XHP-7 is a rectangular connector housing manufactured by JST Sales America Inc.

Positions: 7-position
Connector Type: Receptacle
Pitch: 0.098" (2.50mm)
Mounting: Free hanging (in-line)
Contact Termination: Crimp
Contacts: Not included
Package: Standard package
Units in Package: 1,000 in a bulk package
ECCN: EAR99
MSL Level: 1 (Unlimited)
