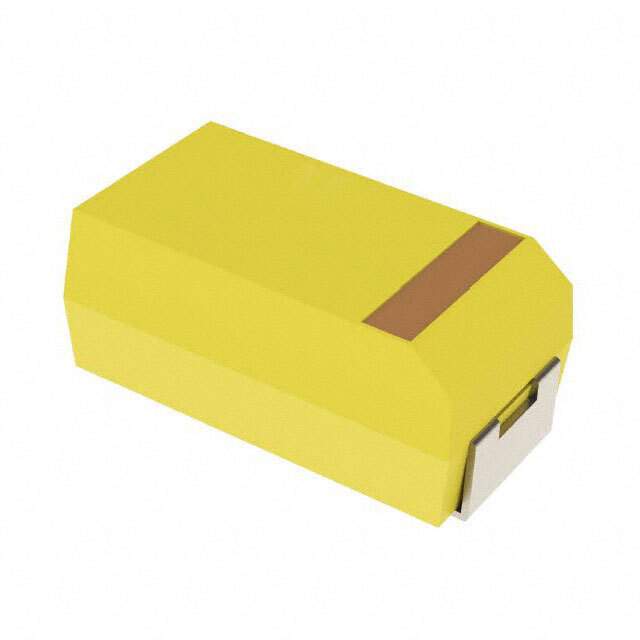

B45196H3686M409 Real Image
Same model may have multiple batches, images only for reference.

B45196H3686M409

Part No B45196H3686M409
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 68UF 16V 20% 2917
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 68μF
Tolerance ±20%
Voltage Rating 16V
Type Molded
ESR 800 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 048893-B45196H3686M409
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B45196H3686M409 CAD Model

Description

Description

The B45196H3686M409 capacitor is versatile and reliable, crafted to support a wide range of electronic applications. Its durable design ensures peak performance and minimal maintenance.

Applications

  • Embedded Systems
  • Energy Storage Devices
  • Electric Vehicles
  • Renewable Energy Systems

Features and Benefits

  • High efficiency in energy storage
  • Reliable operation in harsh environments
  • Minimal self-discharge
  • Environmentally friendly components

Additional Details

Incorporating this capacitor into your designs can lead to significant performance enhancements, particularly in energy-sensitive applications.
