Same model may have multiple batches, images only for reference.

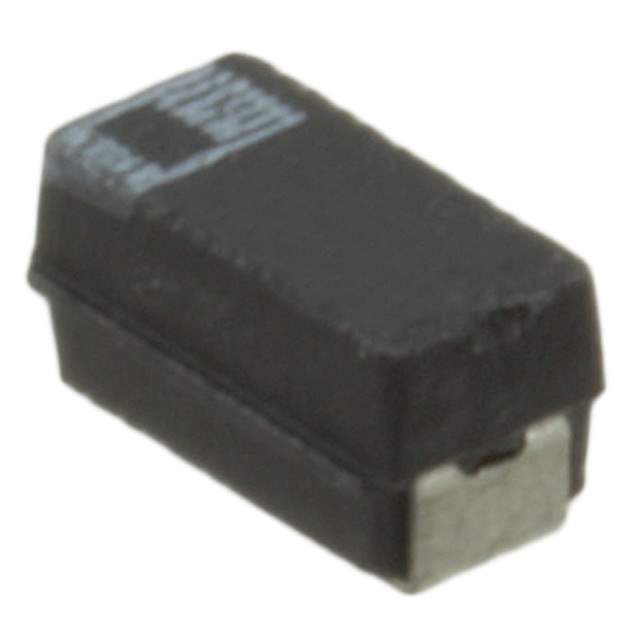

293D684X0020A2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D684X0020A2TE3

Part No 293D684X0020A2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 0.68UF 20V 20% 1206
Datasheet
293D684X0020A2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 0.68μF
Tolerance ±20%
Voltage Rating 20V
Type Molded
ESR 10 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
Win Source Part Number 1003736-293D684X0020A2TE3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 293D684X0020A2TE3 CAD Model

Description

The 1003736-293D684X0020A2TE3 is an active electronic component manufactured by Vishay.

  • Type: Molded Capacitor
  • Voltage Rating: 20V
  • Capacitance: 0.68μF
  • Tolerance: ±20%
  • ESR: 10 Ohm
  • Mounting: SMD (SMT)
  • Suitable for: Use in various applications, including general purpose
  • Temperature Range: -55°C to 125°C
