Same model may have multiple batches, images only for reference.

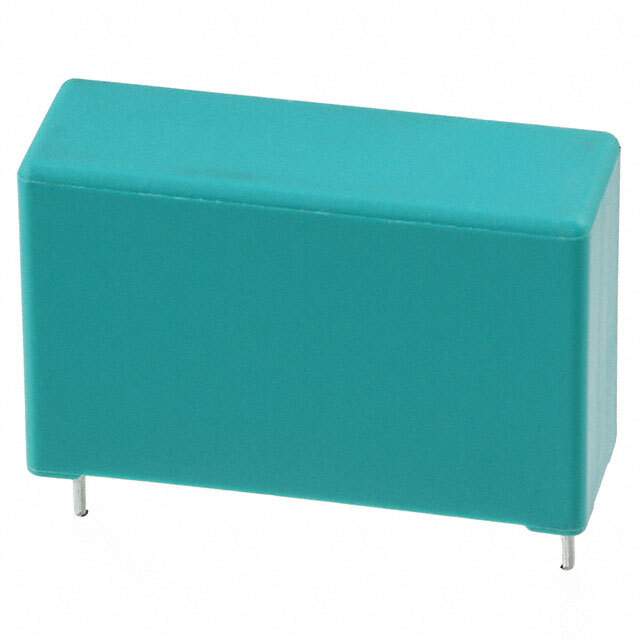

C4AEJBU4500A1YJ Real Image
Same model may have multiple batches, images only for reference.

C4AEJBU4500A1YJ

Part No C4AEJBU4500A1YJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 5UF 5% 700VDC RADIAL / 5 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial
Datasheet
C4AEJBU4500A1YJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series C4AE
Package Bulk
Capacitance 5 µF
Tolerance ±5%
Voltage Rating - DC 700V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 10.7 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.240" L x 0.551" W (31.50mm x 14.00mm)
Height - Seated (Max) 1.110" (28.20mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering; High Frequency, Switching
Base Product Number C4AEJB
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 399-13078
Standard Package 96
Win Source Part Number 1011644-C4AEJBU4500A1YJ
Ultra Librarian 3D Model Ultra Librarian C4AEJBU4500A1YJ CAD Model

Description

The KEMET C4AE film capacitor has a capacitance of 5 µF and a tolerance of ±5%.

  • Manufacturer: KEMET
  • Series: C4AE
  • Capacitance: 5 µF
  • Tolerance: ±5%
  • Voltage Rating: 700V DC
  • Application: DC link, DC filtering, high frequency, and switching applications
  • Mounting: Through Hole
  • Package/Case: Radial
  • Dielectric Material: Polypropylene (PP) and metallized
  • ESR: 10.7 mOhms
  • Lead Spacing: 1.083" (27.50mm)
  • REACH: Not affected
  • ECCN: EAR99
