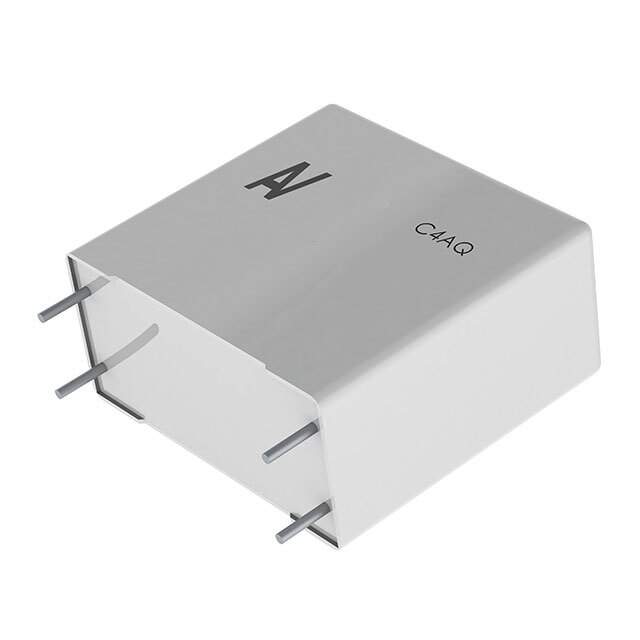

C4AQSEW5400A3BJ Real Image
Same model may have multiple batches, images only for reference.

C4AQSEW5400A3BJ

Part No C4AQSEW5400A3BJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 40UF 5% 1.5KVDC RAD / 40 µF Film Capacitor 1500V (1.5kV) Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AQSEW5400A3BJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ
Package Box
Capacitance 40 µF
Tolerance ±5%
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 2.8 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 2.264" L x 1.772" W (57.50mm x 45.00mm)
Height - Seated (Max) 2.571" (65.30mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQSE
Standard Package 18
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1340329-C4AQSEW5400A3BJ
Ultra Librarian 3D Model Ultra Librarian C4AQSEW5400A3BJ CAD Model

Description

The KEMET C4AQ series film capacitor is a high-quality component that is ideal for use in automotive, DC link, and DC filtering applications.

  • Series: C4AQ
  • Applications: Automotive, DC Link, DC Filtering
  • Voltage Rating: 1500V DC
  • Capacitance: 40 µF
  • Tolerance: ±5%
  • ESR: 2.8 mOhms
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Mounting Type: Through-Hole
  • Package/Case: Radial-4 Leads
  • Temperature Range: -55°C to 105°C
  • Packaging: Box
  • Standard Package: 18
