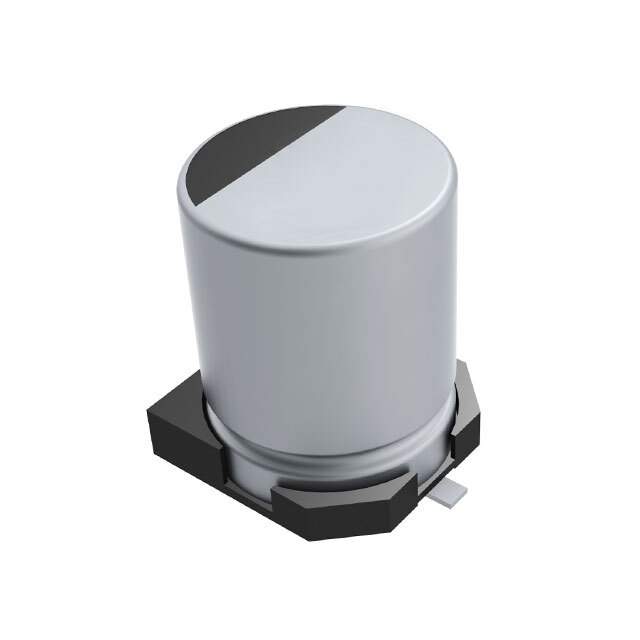

EDH157M063A9PAA Real Image
Same model may have multiple batches, images only for reference.

EDH157M063A9PAA

Part No EDH157M063A9PAA
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 150UF 20% 63V SMD / 150 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
EDH157M063A9PAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr KEMET
Series EDH
Package Tape & Reel
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 360 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EDH157M
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338920-EDH157M063A9PAA
Ultra Librarian 3D Model Ultra Librarian EDH157M063A9PAA CAD Model

Description

The KEMET EDH157M063A9PAA is an aluminum electrolytic capacitor with a capacitance of 150 µF and a voltage rating of 63V.

  • Mfr: KEMET
  • Series: EDH
  • Capacitance: 150 µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Ripple Current: 360 mA @ 120 Hz and 450 mA @ 10 kHz
  • Temperature Range: -40°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Package: Radial, Can - SMD
  • Size: 0.394" Dia (10.00mm)
  • Packaging: Tape and Reel
  • Quantity: 500 pieces
  • REACH: Unaffected
  • ECCN: EAR99
