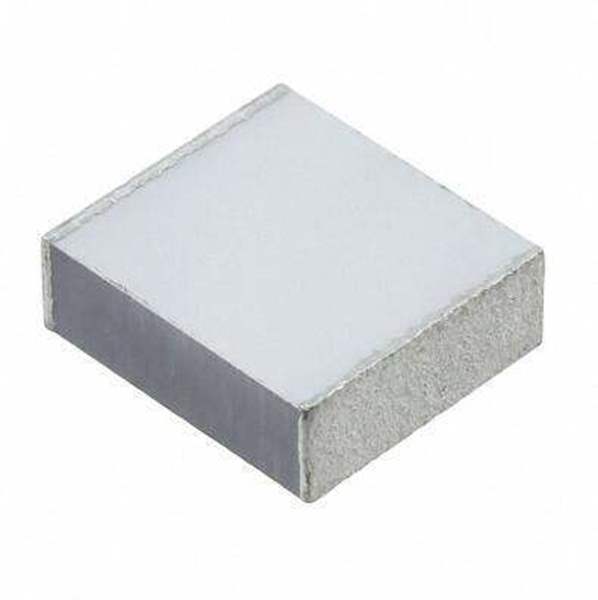

LDEPH3220KA5N00KEMET
Same model may have multiple batches, images only for reference.

LDEPH3220KA5N00

Part No LDEPH3220KA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 630VDC 6054
Datasheet
LDEPH3220KA5N00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Part Status Active
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 200V
Voltage Rating - DC 630V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.610" L x 0.539" W (15.50mm x 13.70mm)
Height - Seated (Max) 0.193" (4.90mm)
Termination Solder Pads
Win Source Part Number WS1306445-LDEPH3220KA5N00
Ultra Librarian 3D Model Ultra Librarian LDEPH3220KA5N00 CAD Model

Description

Benefits • Rated voltage: 50 – 1,000 VDC<br /> • Rated voltage: 40 – 250 VAC • Capacitance range: 0.001 – 4.7 µF<br /> • EIA Size: 1206 – 6054 • Capacitance tolerance: ±10%, ±20%, ±5% on request • Climatic category: 55/125/56 • RoHS Compliant and lead-free terminations • Operating temperature range of −55°C to +125°C<br /> • Automotive (AEC–Q200) grades available<br />
