Same model may have multiple batches, images only for reference.

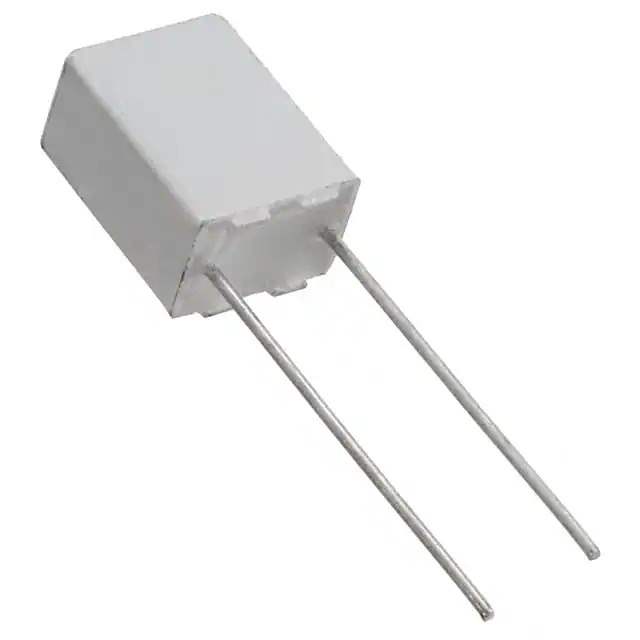

MMK5103K100J01L16.5TR18 Real Image
Same model may have multiple batches, images only for reference.

MMK5103K100J01L16.5TR18

Part No MMK5103K100J01L16.5TR18
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 10000PF 10% 100VDC RAD
Datasheet
MMK5103K100J01L16.5TR18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series MMK
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Capacitance 10000 pF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications General Purpose
Base Product Number MMK5
Standard Package 2,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 236106-MMK5103K100J01L16.5TR18
Ultra Librarian 3D Model Ultra Librarian MMK5103K100J01L16.5TR18 CAD Model

Description

The 236106-MMK5103K100J01L16.5TR18 is a film capacitor from KEMET's MMK series.

  • Type: Radial capacitor
  • Capacitance: 10000 pF
  • Voltage Rating: 100V DC
  • Tolerance: ±10%
  • Dielectric Material: Polyester and metallized
  • Package Size: 0.283" L x 0.098" W (7.20mm x 2.50mm)
  • Seated Height: 0.256" (6.50mm)
  • Mounting Type: Through-hole
  • Standard Package: 2,500 pcs
  • Application: General-purpose
