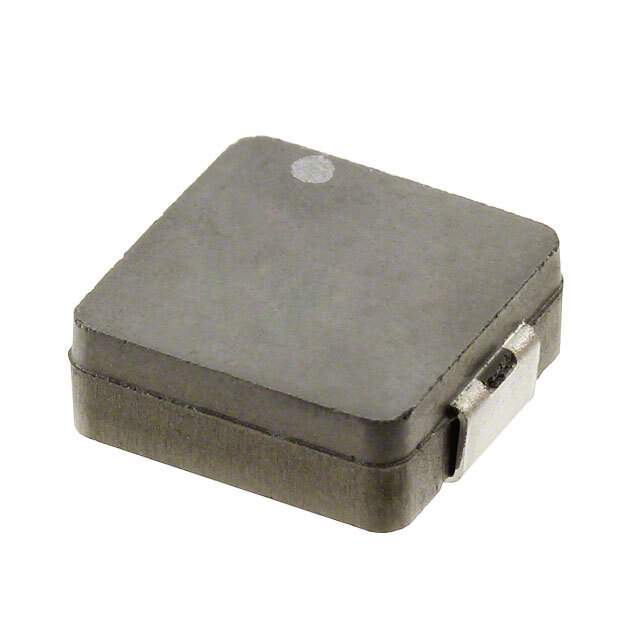

Same model may have multiple batches, images only for reference.

MPLC1040L3R3

Name: MPLC1040L3R3
Brand: Kemet
SKU: 992718
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MPLC1040L3R3
Manufacturer	Kemet
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 8.8A 14 MOHM SMD / 3.3 µH Shielded Wirewound Inductor 8.8 A 14mOhm Max 2-SMD, J-Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	MPLC
Package	Tape & Reel
Type	Wirewound
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	8.8 A
Current - Saturation (Isat)	9.3A
Shielding	Shielded
DC Resistance (DCR)	14mOhm Max
Temperature Range - Operating	-20°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD, J-Lead
Dimension	0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Base Product Number	MPLC1040
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	399-10989-2,399-10989-1,399-10989-6
Standard Package	500
Win Source Part Number	992718-MPLC1040L3R3
Ultra Librarian 3D Model	Ultra Librarian MPLC1040L3R3 CAD Model

Alternative Products

Description

The MPLC series is a shielded wirewound fixed inductor with an inductance of 3.3 µH and a current rating of 8.8 A.

Inductance: 3.3 µH
Current Rating: 8.8 A
Packaging: Tape and reel
Standard Package: 500
Height: 0.157" (4.00mm)
Package/Case Size: 2-SMD, J-Lead
DCR (DC Resistance): 14mOhm Max
Temperature Range: -20°C ~ 120°C
Mounting: SMD (SMT)
Applications: Power supplies, DC-DC converters, and EMI filtering
