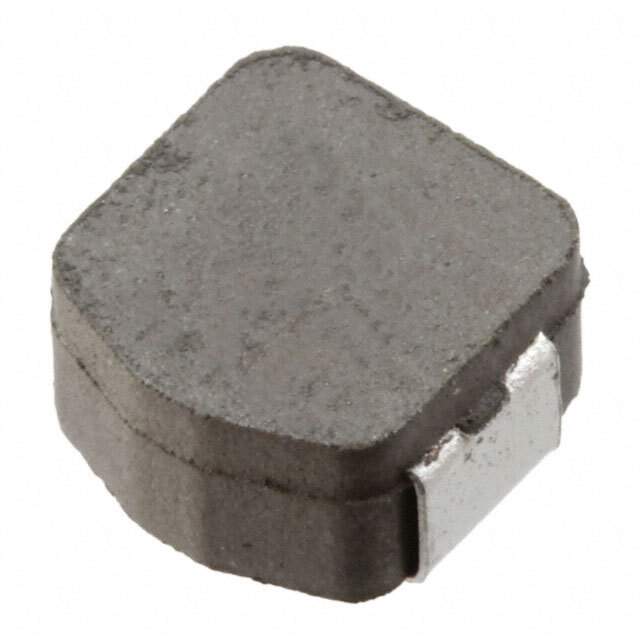

Same model may have multiple batches, images only for reference.

MPLCG0530L1R0

Name: MPLCG0530L1R0
Brand: Kemet
SKU: 1080127
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MPLCG0530L1R0
Manufacturer	Kemet
Catalog	Fixed Inductors
Description	FIXED IND 1UH 7.4A 14.6 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 7.4 A 14.6mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	MPLCG
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Metal Composite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	7.4 A
Current - Saturation (Isat)	5.6A
Shielding	Shielded
DC Resistance (DCR)	14.6mOhm Max
Temperature Range - Operating	-20°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	MPLCG0530
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	399-10981-6,399-10981-2,UPIE0530L1R000,399-10981-1
Standard Package	3,500
Win Source Part Number	1080127-MPLCG0530L1R0
Ultra Librarian 3D Model	Ultra Librarian MPLCG0530L1R0 CAD Model

Alternative Products

Description

The MPLCG0530L1R0 is a drum core, wirewound inductor with a metal composite core.

Type: drum core, wirewound
Core Material: metal composite
Shielded: Yes
Inductance: 1 µH
Tolerance: ±20%
DC Resistance (DCR): 14.6mOhm max
Current Rating: 7.4A
Mounting: SMD (SMT)
Package/Case: nonstandard
Temperature Range: -20°C to 120°C
