Same model may have multiple batches, images only for reference.

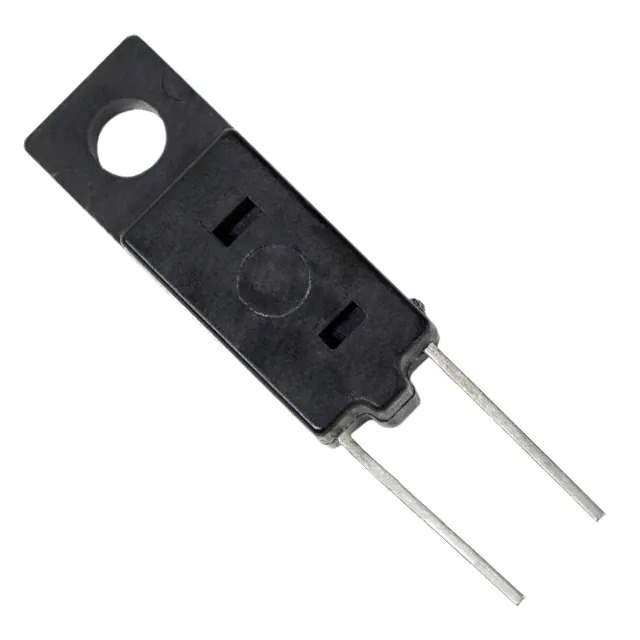

OHD5R-125B Real Image
Same model may have multiple batches, images only for reference.

OHD5R-125B

Part No OHD5R-125B
Manufacturer Kemet
Catalog Temperature Sensors - Thermostats - Mechanical
Description THERMOSTAT 125DEG C SPST-NC MOD
Datasheet
OHD5R-125B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - Thermostats - Mechanical
Mfr KEMET
Series OHD™ Thermal Guard
Package Bulk
Product Status Active
Circuit SPST-NC
Switching Temperature 257°F (125°C)
Current Rating - DC 0.1A (30V)
Tolerance ±9°F (±5°C)
Switching Cycles 100K
Termination Style PC Pins
Mounting Type Through Hole
Package / Case Module
Standard Package 700 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 1039495-OHD5R-125B
Ultra Librarian 3D Model Ultra Librarian OHD5R-125B CAD Model

Description

The OHD™ Thermal Guard is a mechanical thermostat temperature sensor designed for use in various electronic applications.

  • Switching Temperature: 257°F (125°C)
  • Circuit Configuration: SPST-NC
  • Tolerance: ±9°F (±5°C)
  • Current Rating: 0.1A (30V) for DC applications
  • Switching Cycles: 100K
  • Mounting: Through Hole
  • Package: Module
  • Series: OHD™
