Same model may have multiple batches, images only for reference.

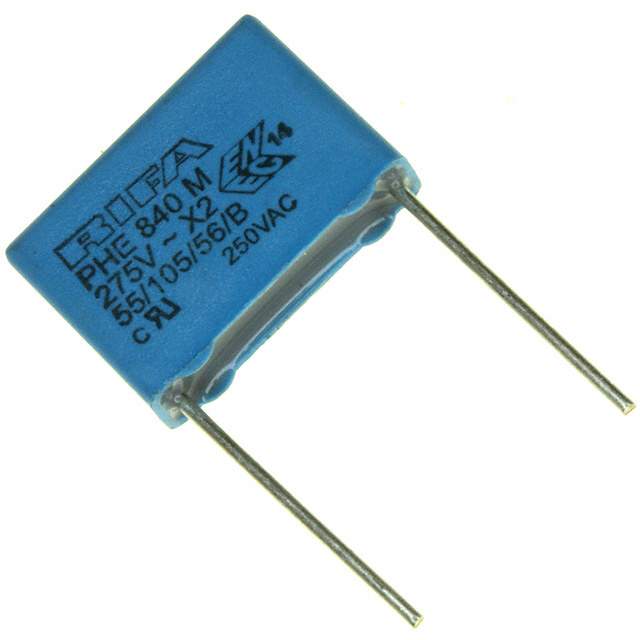

PHE840MB6100MB05R17 Real Image
Same model may have multiple batches, images only for reference.

PHE840MB6100MB05R17

Part No PHE840MB6100MB05R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 20% 760VDC RADIAL
Datasheet
PHE840MB6100MB05R17 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.1μF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 042105-PHE840MB6100MB05R17
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial, Industrial
Ultra Librarian 3D Model Ultra Librarian PHE840MB6100MB05R17 CAD Model

Description

The PHE840MB6100MB05R17 is a polypropylene (PP), metallized capacitor manufactured by Kemet.

  • Safety Rating: X2 safety rated
  • Capacitance: 0.1μF
  • Tolerance: ±20%
  • Mounting: through-hole mounted with PC pins
  • Voltage Rating: 275V (AC) and 760V (DC)
  • Application: designed for EMI and RFI suppression
  • Height (Seated): 0.492" (12.50mm)
  • Operating Temperature: operate in a temperature range of -55°C to 105°C
  • Dimension: 0.709" L x 0.217" W (18.00mm x 5.50mm)
  • Supply and Demand: sufficient
  • Application: used in industrial applications
