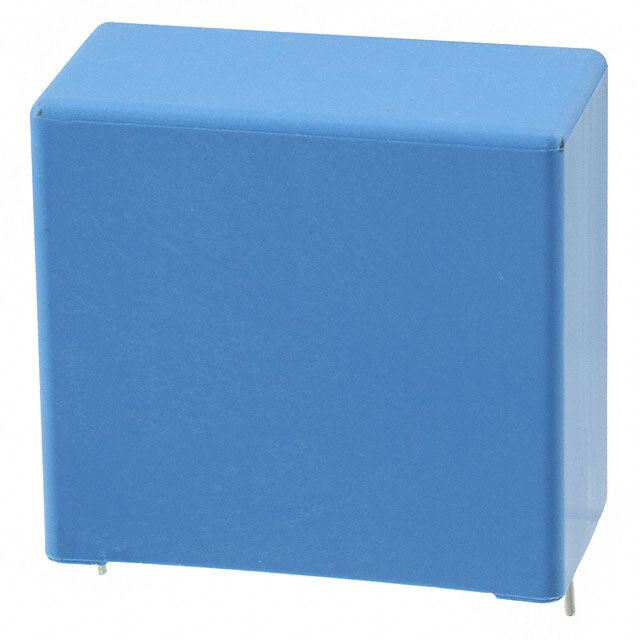

Same model may have multiple batches, images only for reference.
PHE844RR7220MR06L2 KEMET – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE844RR7220MR06L2

Part No PHE844RR7220MR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2.2UF 20% 1KVDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category CapacitorsFilm Capacitors
Mfr KEMET
Series PHE844
Packaging Bulk
Part Status Active
Capacitance 2.2 μF
Tolerance ±20%
Voltage Rating - AC 440V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.614" L x 0.827" W (41.00mm x 21.00mm)
Height - Seated (Max) 1.496" (38.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications EMI, RFI Suppression
Ratings X1
Base Product Number PHE844
Ultra Librarian 3D Model Ultra Librarian PHE844RR7220MR06L2 CAD Model
