Same model may have multiple batches, images only for reference.

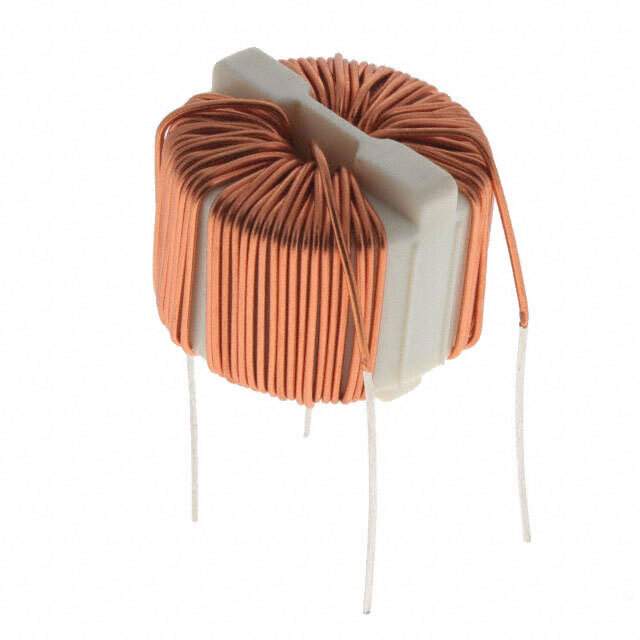

SC-02-E620H Real Image
Same model may have multiple batches, images only for reference.

SC-02-E620H

Part No SC-02-E620H
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.2 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 180mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.063" Dia (27.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-02
Other Names 399-SC-02-E620H,UALSC02E620H00
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277035-SC-02-E620H
Ultra Librarian 3D Model Ultra Librarian SC-02-E620H CAD Model

Description

The KEMET SC-02 Common Mode Choke is a highly reliable filter that is designed for power line applications. The KEMET SC-02 Common Mode Choke is a reliable solution for applications that require high performance and reliability.

  • Voltage Rating: 250V AC
  • Voltage Rating: 250V DC
  • Current Rating: 2A
  • Package: Horizontal package with no base and 4 PC pins
  • Diameter: 1.063 inches
  • Height: 0.787 inches
  • ECCN: EAR99
  • REACH: not affected by REACH
