Same model may have multiple batches, images only for reference.

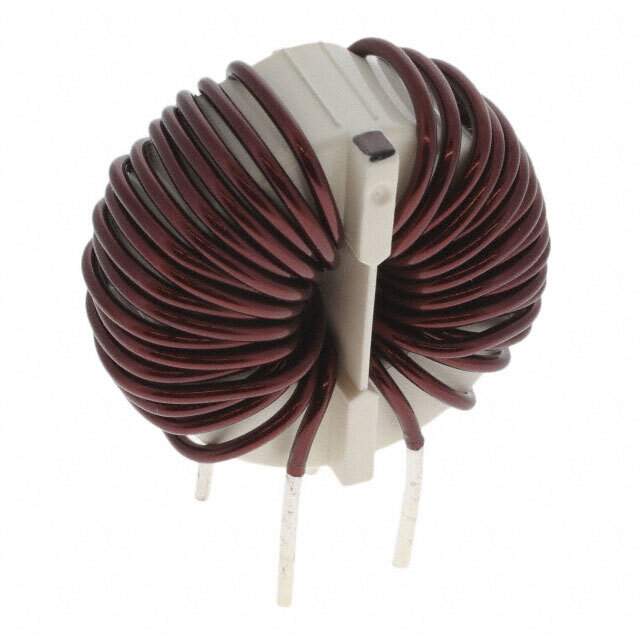

SC-08-700 Real Image
Same model may have multiple batches, images only for reference.

SC-08-700

Part No SC-08-700
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 7 mH @ 1 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.969" Dia (50.00mm)
Height (Max) 1.969" (50.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-700
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277030-SC-08-700
Ultra Librarian 3D Model Ultra Librarian SC-08-700 CAD Model

Description

The KEMET 1277030-SC-08-700 is a common mode choke filter that is widely used in power line applications. The filter is manufactured by KEMET, which is a well-known name in the electronic components industry.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 8A
  • Inductance: 7 mH @ 1 kHz frequency
  • DC Resistance: 40mOhm
