Same model may have multiple batches, images only for reference.

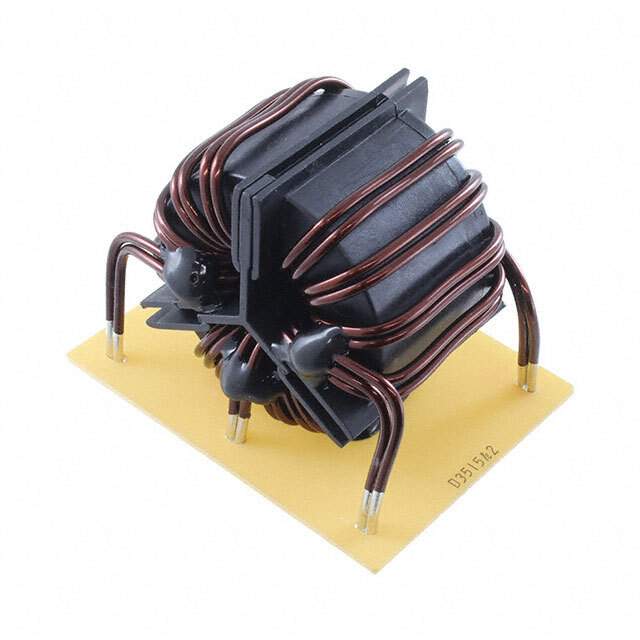

SC-35-SD040J Real Image
Same model may have multiple batches, images only for reference.

SC-35-SD040J

Part No SC-35-SD040J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 40 µH @ 100 kHz
Current Rating (Max) 35A
DC Resistance (DCR) (Max) 2mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 3.150" L x 2.441" W (80.00mm x 62.00mm)
Height (Max) 2.559" (65.00mm)
Package / Case Vertical, 6 PC Pin
Base Product Number SC-35
Other Names 399-SC-35-SD040J,UALSC35SD040J0
Standard Package 18
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276928-SC-35-SD040J
Ultra Librarian 3D Model Ultra Librarian SC-35-SD040J CAD Model

Description

The KEMET SC-35-SD040J is a common mode choke filter that is ideal for power line applications.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 35A
  • Height: 65.00mm
  • Dimension: 80.00mm x 62.00mm
  • Mounting Style: Through-hole
  • Package: Vertical, 6 PC pin
  • Number of Lines: 3
  • Inductance: 40 µH @ a frequency of 100 kHz
  • DC Resistance (DCR): 2mOhm
  • Temperature Range: 25°C to 120°C
  • ECCN: EAR99
  • REACH: Unaffected
