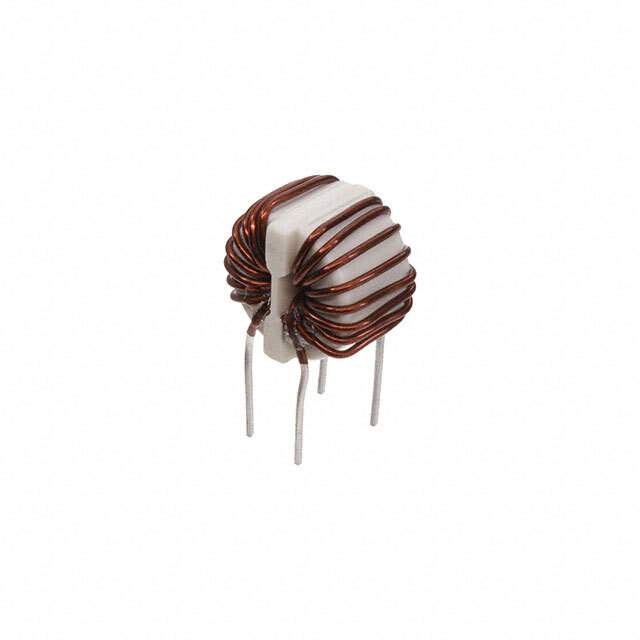

Same model may have multiple batches, images only for reference.

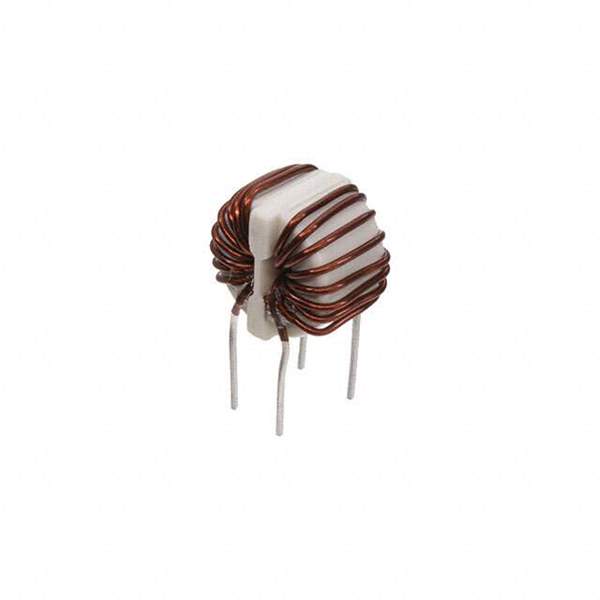

SCF25-06-2000 Real Image
Same model may have multiple batches, images only for reference.

SCF25-06-2000

Part No SCF25-06-2000
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 mH @ 100 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 26mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.319" (33.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SCF25-06
Other Names 399-20217
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276924-SCF25-06-2000
Ultra Librarian 3D Model Ultra Librarian SCF25-06-2000 CAD Model

Description

The Kemet SCF25-06-2000 is a common mode choke filter designed to reduce electromagnetic interference in power lines.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 6A
  • Lines: 2
  • Inductance: 20mH @ 100 kHz
  • DC Resistance (DCR): 26mOhm
  • Temperature Range: -25°C to 120°C
  • Mounting: Through-hole
  • Package: Vertical, no base, 4 PC pin
