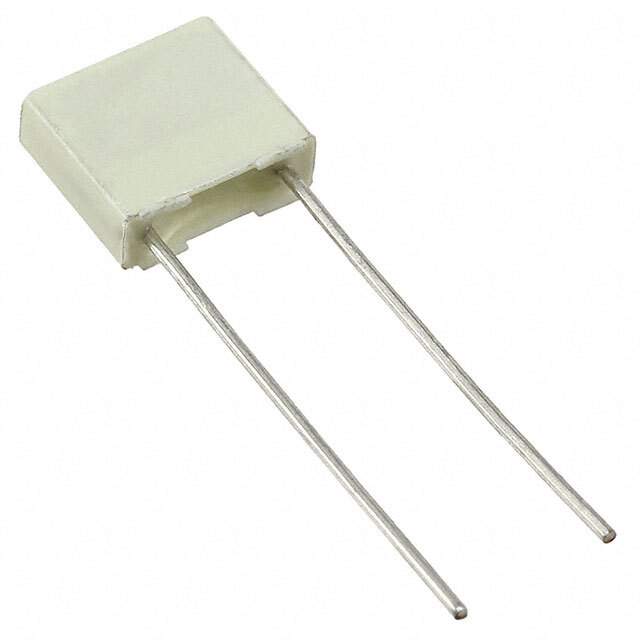

SMR5223J50J01L16.5CBULK Real Image
Same model may have multiple batches, images only for reference.

SMR5223J50J01L16.5CBULK

Part No SMR5223J50J01L16.5CBULK
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series SMR
Package Bulk
Capacitance 0.022 µF
Tolerance ±5%
Voltage Rating - AC 30V
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized
Temperature Range - Operating -55°C ~ 150°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications General Purpose
Features High Temperature
Base Product Number SMR5
Other Names 399-13051,F211JF223(1)050(2),F211JF223J050ALG5C
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1302390-SMR5223J50J01L16.5CBULK
Ultra Librarian 3D Model Ultra Librarian SMR5223J50J01L16.5CBULK CAD Model

Description

The SMR5 series of film capacitors from KEMET are designed for general-purpose applications.

  • Package: Radial
  • Mounting Type: Through-hole
  • Capacitance: 0.022 µF
  • Tolerance: ±5%
  • Temperature Range: -55°C to 150°C
  • Voltage Rating: 30V AC and 50V DC
  • Lead Spacing: 0.197" (5.00mm)
  • Height: 0.256" (6.50mm)

The device is suitable for use in Capacitors - Film Capacitors applications.
