Same model may have multiple batches, images only for reference.

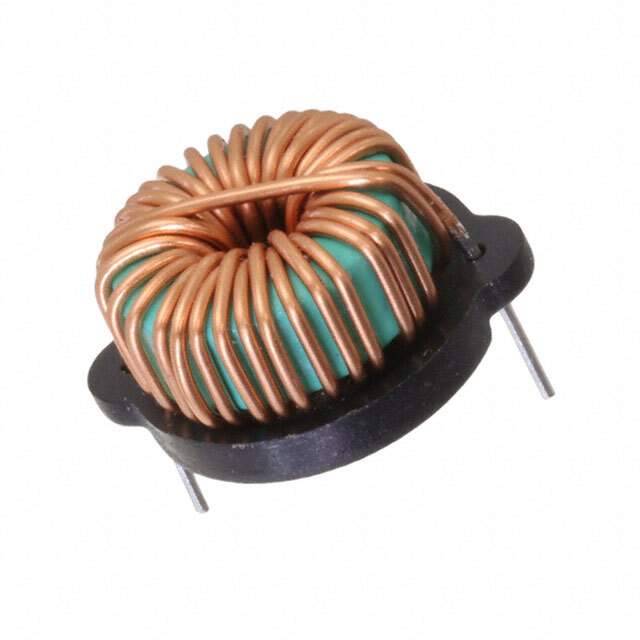

SN5-30P2 Real Image
Same model may have multiple batches, images only for reference.

SN5-30P2

Part No SN5-30P2
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN5-30P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.669" Dia (17.00mm)
Height (Max) 0.354" (9.00mm)
Package / Case Horizontal, 2 PC Pin
Base Product Number SN5
Other Names UALSN530P20000,399-20602
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276836-SN5-30P2
Ultra Librarian 3D Model Ultra Librarian SN5-30P2 CAD Model

Description

The KEMET SN5 series common mode choke is a reliable and high-quality filter that is ideal for use in power line applications.

  • Lines: Two lines
  • Mounting: Horizontal, 2 PC pin package
  • Maximum Height: 0.354" (9.00mm)
  • Diameter: 0.669" (17.00mm)
  • Temperature Range: -25°C to 105°C
  • Manufacturer: KEMET
