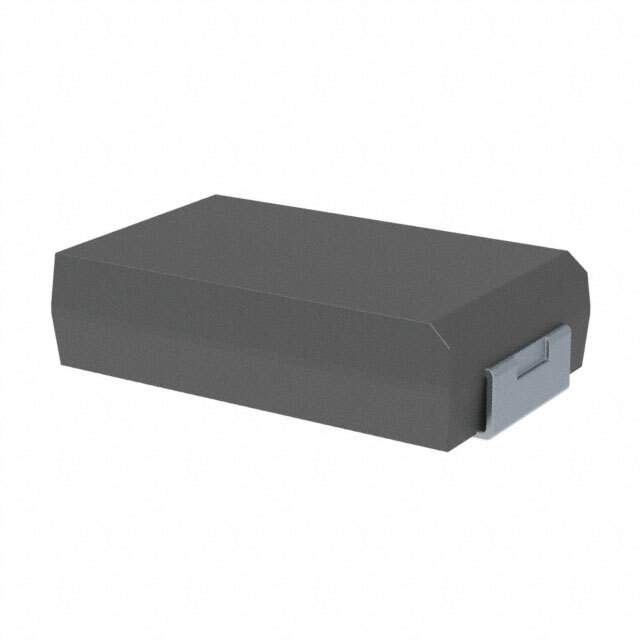

T520V337M004ATE025 Real Image
Same model may have multiple batches, images only for reference.

T520V337M004ATE025

Part No T520V337M004ATE025
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 330UF 4V 2917 / Cap Tant Polymer 330uF 4VDC V CASE 20% (7.3 X 4.3 X 1.8mm) SMD 7343-19 0.025 Ohm 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 4V
Type Molded
ESR (Equivalent Series Resistance) 25 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Manufacturer Size Code V
Features General
Win Source Part Number 796148-T520V337M004ATE025
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date March 17, 2017
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian T520V337M004ATE025 CAD Model

Description

The Kemet KO-CAP T520 series capacitor is a molded type capacitor that comes in a 2917 (7343 Metric) package. Kemet

  • Capacitance: 330μF
  • Tolerance: ±20%
  • ESR: 25 mOhm
  • Voltage Rating DC: 4V
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • EOL Date: 2033
