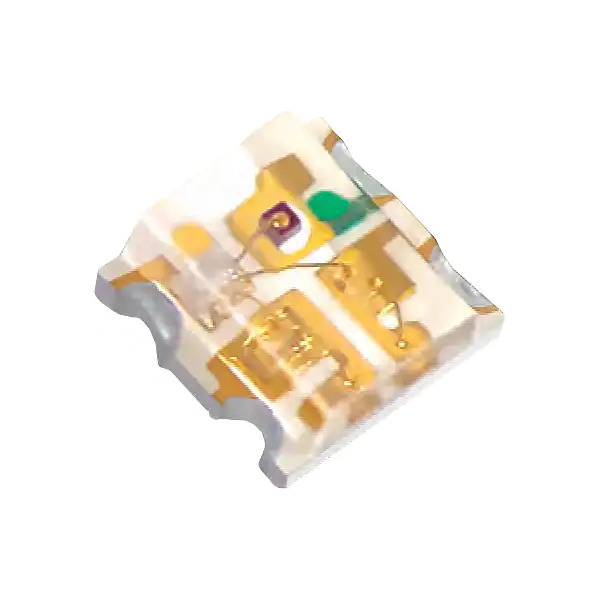

Same model may have multiple batches, images only for reference.
APTF1616SURKCGKSYKC Kingbright Corporation
Same model may have multiple batches, images only for reference.

APTF1616SURKCGKSYKC

Part No APTF1616SURKCGKSYKC
Manufacturer Kingbright Corporation
Catalog LED Indication - Discrete
Description LED GREEN/RED/YELLOW CLEAR 4SMD
Datasheet
APTF1616SURKCGKSYKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Series HELI Colour
Package Tape & Reel
Product Status Active
Color Green, Red, Yellow
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 55mcd Green, 250mcd Red, 120mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.95V Red, 2V Yellow
Current - Test 20mA Green, 20mA Red, 20mA Yellow
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 570nm Green, 630nm Red, 590nm Yellow
Wavelength - Peak 574nm Green, 650nm Red, 590nm Yellow
Features -
Package / Case 4-SMD, No Lead
Supplier Device Package 4-SMD
Size / Dimension 1.60mm L x 1.60mm W
Height (Max) 0.90mm
Base Product Number APTF1616
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371785-APTF1616SURKCGKSYKC
Ultra Librarian 3D Model Ultra Librarian APTF1616SURKCGKSYKC CAD Model

Description

The APTF1616SURKCGKSYKC is a discrete LED indication component manufactured by Kingbright.

  • Series: HELI Colour
  • Mounting Type: Surface Mount
  • Package Size: 1.60mm x 1.60mm
  • Shape: Rectangular
  • Lens: Flat Top
  • Colors: Green, Red, and Yellow
  • Dominant Wavelength (Green): 570nm
  • Dominant Wavelength (Red): 630nm
  • Dominant Wavelength (Yellow): 590nm
  • Millicandela Rating (Green): 55mcd
  • Millicandela Rating (Red): 250mcd
  • Millicandela Rating (Yellow): 120mcd
  • Voltage Forward (Green): 2.1V
  • Voltage Forward (Red): 1.95V
  • Voltage Forward (Yellow): 2V
  • Current Test (All Colors): 20mA
  • Product Status: Active
