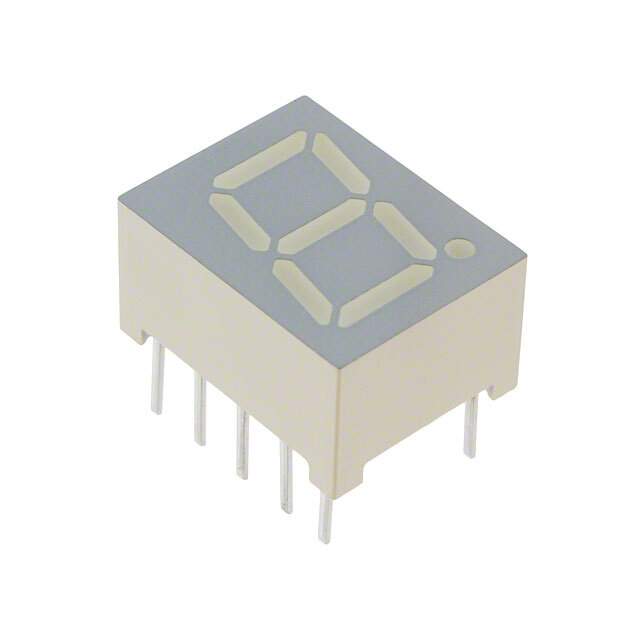

SA39-11YWA Real Image
Same model may have multiple batches, images only for reference.

SA39-11YWA

Part No SA39-11YWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.39" SGL YLW 10DIP  /  Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 20mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)
Datasheet
SA39-11YWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm)
Digit/Alpha Size 0.39" (10.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Yellow
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 3mcd
Wavelength - Peak 590nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.300", 7.62mm)
Base Product Number SA39-11
Other Names SA39-11YWA,754-2274
Standard Package 39
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242713-SA39-11YWA
Ultra Librarian 3D Model Ultra Librarian SA39-11YWA CAD Model

Description

The Kingbright SA39-11YWA is a yellow LED character and numeric display module.

  • Display Type: 7-Segment
  • Digit/Alpha Size: 0.39 inches (10.00mm)
  • Common Pin: Common Anode
  • Millicandela Rating: 3mcd
  • Voltage-Forward: 2.1V
  • Current-Test: 20mA
  • Wavelength-Peak: 590nm
  • Power Dissipation (max): 75mW
  • Package Type: Tube
  • Package/Case Size: 10-DIP (0.300 inches, 7.62mm)
