Same model may have multiple batches, images only for reference.

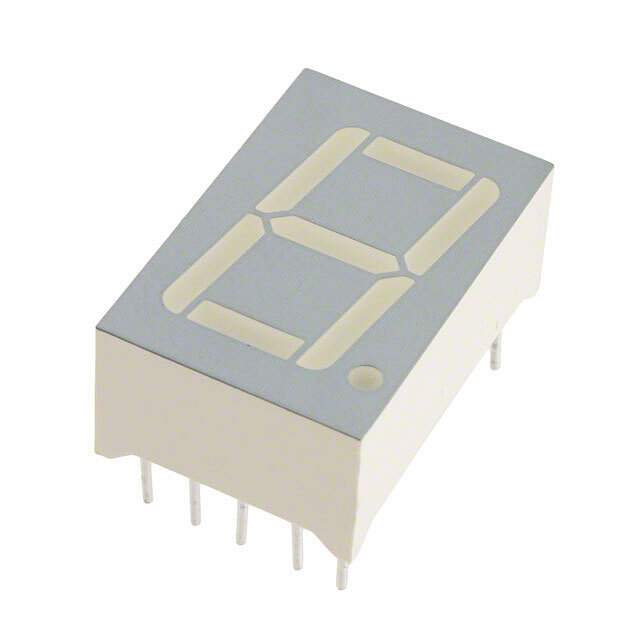

SA56-21SRWA Real Image
Same model may have multiple batches, images only for reference.

SA56-21SRWA

Part No SA56-21SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL RED 10DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Datasheet
SA56-21SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Millicandela Rating 34mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number SA56-21
Other Names SA56-21SRWA,754-1697-5
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242565-SA56-21SRWA
Ultra Librarian 3D Model Ultra Librarian SA56-21SRWA CAD Model

Description

The Kingbright SA56-21SRWA Display Module is a high-quality LED character and numeric display module that is perfect for a variety of electronic projects.

  • Category: Optoelectronics
  • Package: 40 standard packages
  • Color: Red
  • Millicandela Rating: 34mcd
  • Voltage Forward (Vf) (typ): 1.85V
  • Current Test: 20mA
  • Peak Wavelength: 660nm
  • Power Dissipation (max): 75mW
  • Display Type: 7-Segment
  • Characters: 1
  • Digit/Alpha Size: 0.56 inches (14.22mm)
  • Common Pin: Common Anode
  • Package/Case: 10-DIP (0.600 inches, 15.24mm)
  • Dimension: 0.750 inches H x 0.500 inches W x 0.315 inches D (19.05mm x 12.70mm x 8.00mm)
  • ECCN: EAR99
  • Status: Obsolete
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
  • Other Names: SA56-21SRWA, 754-1697-5
  • Series: SA56-21
