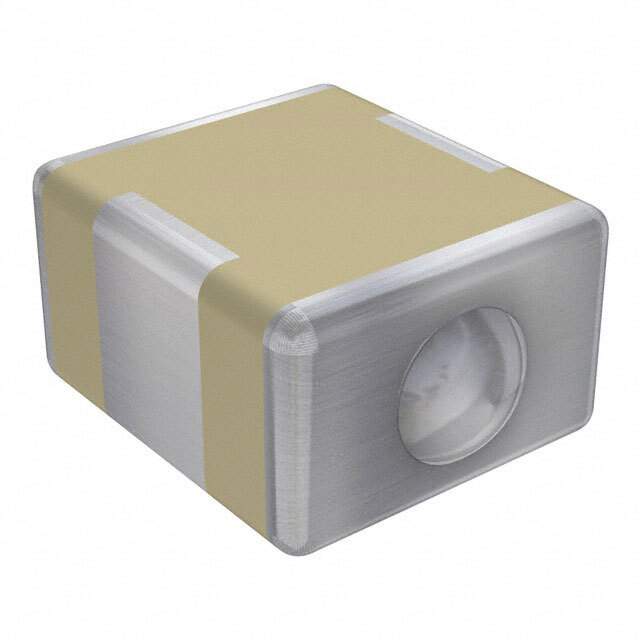

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Feed Through Capacitors
Mfr Knowles Syfer
Series SBSM
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±20%
Voltage - Rated 500V
Current 20 A
Temperature Range - Operating -55°C ~ 125°C
Insertion Loss 50dB @ 100MHz
Temperature Coefficient X7R
Mounting SMD (SMT)
Package / Case 2220 (5750 Metric), 3 PC Pad
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height (Max) 0.133" (3.38mm)
Base Product Number SBSMC
Other Names 1608-1197-3,1608-1197-3,1608-1197-6,1608-1197-2,1608-1197-1
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1276327-SBSMC5000103MXT
Ultra Librarian 3D Model Ultra Librarian SBSMC5000103MXT CAD Model

Description

The SBSM series feed through capacitors from Knowles Syfer are designed to reduce electromagnetic interference (EMI) in electronic circuits.

  • Series: SBSM
  • Capacitance: 10000 pF
  • Tolerance: ±20%
  • Voltage: 500V
  • Current: Up to 20A
  • Package: 2220 (5750 Metric), 3 PC Pad
  • Packaging: Tape and reel
  • Standard Package: 500
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Temperature Coefficient Material: X7R
  • Insertion Loss: 50dB @ 100MHz
