Same model may have multiple batches, images only for reference.

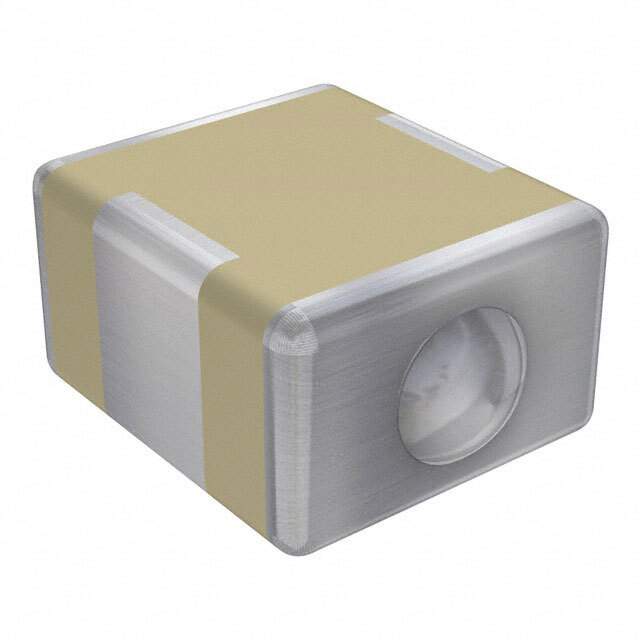

SBSMP5000102MXT Real Image
Same model may have multiple batches, images only for reference.

SBSMP5000102MXT

Part No SBSMP5000102MXT
Manufacturer Knowles Syfer
Catalog EMI/RFI Filters (LC, RC Networks)
Datasheet
SBSMP5000102MXT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Knowles Syfer
Series SBSM
Package Tape & Reel
Product Status Obsolete
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 34dB @ 100MHz
Current 10 A
Values C = 1000pF
ESD Protection No
Applications General Purpose
Voltage - Rated 500V
Mounting SMD (SMT)
Package / Case 2220 (5750 Metric), 3 PC Pad
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height 0.130" (3.30mm)
Other Names 1608-1200-3,1608-1200-2,1608-1200-1,1608-1200-3,1608-1200-6
Standard Package 500
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276435-SBSMP5000102MXT
Ultra Librarian 3D Model Ultra Librarian SBSMP5000102MXT CAD Model

Description

The SBSMP5000102MXT is a low pass EMI/RFI filter manufactured by Knowles Syfer.

  • Win Source Part Number: 1276435-SBSMP5000102MXT
  • Series: SBSM
  • Package: Tape and Reel
  • Mounting Type: SMD (SMT)
  • Voltage Rating: 500V
  • Current Rating: 10A
  • Attenuation: 34dB @ 100MHz
  • Filter Order: 3rd
  • Center/Cutoff Frequency: Not Specified
  • Resistance Channel: Not Specified
  • Values: C = 1000pF
  • ESD Protection: No
  • Package/Case: 2220 (5750 Metric), 3 PC Pad
  • Height: 0.130" (3.30mm)
  • Temperature Range: Not Specified
  • Product Status: Obsolete
  • RoHS: Non-Compliant
