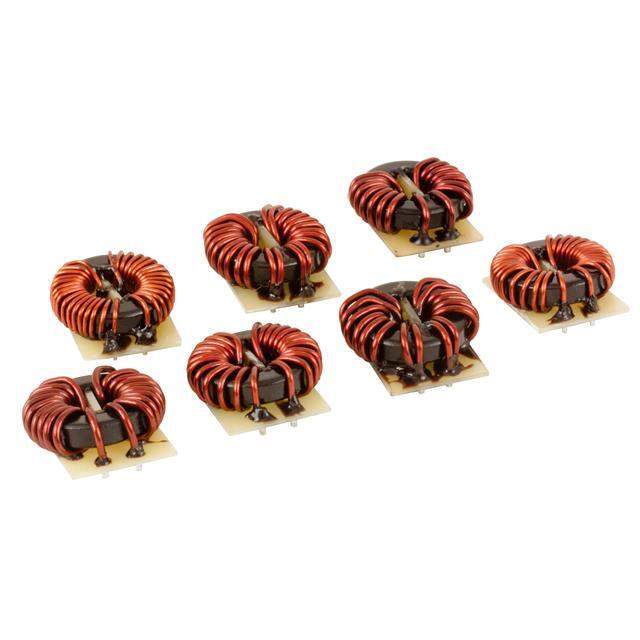

Same model may have multiple batches, images only for reference.

CMX1616Y222B-10

Name: CMX1616Y222B-10
Brand: Laird-Signal Integrity Products
SKU: 1337007
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CMX1616Y222B-10
Manufacturer	Laird-Signal Integrity Products
Catalog	Common Mode Chokes
Description	CMC 2.156MH 19A 2LN TH / 2.156 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 19A DCR 6mOhm
Datasheet	CMX1616Y222B-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	Laird-Signal Integrity Products
Series	CMX
Package	Bulk
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	2.156 mH @ 100 kHz
Current Rating (Max)	19A
DC Resistance (DCR) (Max)	6mOhm
Voltage Rating - AC	250V
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Through Hole
Size / Dimension	1.654" L x 1.575" W (42.00mm x 40.00mm)
Height (Max)	0.610" (15.50mm)
Package / Case	Horizontal, 4 PC Pin
Standard Package	240
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1337007-CMX1616Y222B-10
Ultra Librarian 3D Model	Ultra Librarian CMX1616Y222B-10 CAD Model

Alternative Products

Description

The CMX series common mode choke is designed to reduce electromagnetic interference (EMI) in power line applications.

Series: CMX
Voltage Rating: 250V
Current Rating (Max): 19A
Size/Dimension: 1.654" L x 1.575" W (42.00mm x 40.00mm)
Height: 0.610" (15.50mm)
Packaging: Bulk
Standard Package: 240
ECCN: EAR99
REACH: Unaffected
DC Resistance: 6mOhm
