Same model may have multiple batches, images only for reference.

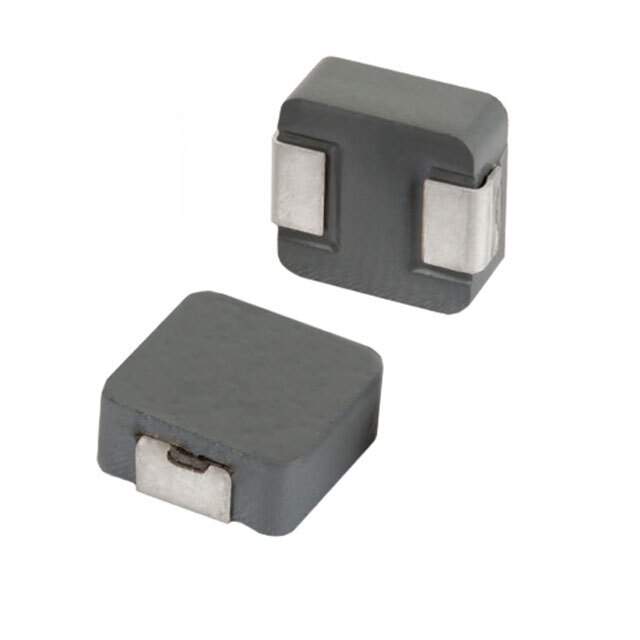

MGV1004R47M-10 Real Image
Same model may have multiple batches, images only for reference.

MGV1004R47M-10

Part No MGV1004R47M-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 470NH 28.5A 1.6MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 9 Weeks
Features 470 nH Inductor 28.5 A
Manufacturer Laird-Signal Integrity Products
Series MGV
Package Reel - TR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 240-2822-6, 240-2822-2, 240-2822TR-ND, 240-2822-1, 240-2822DKR, 240-2822CT, 240-2822DKR-ND, 240-2822CT-ND, 240-2822TR
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 853573-MGV1004R47M-10
Ultra Librarian 3D Model Ultra Librarian MGV1004R47M-10 CAD Model

Description

The Laird-Signal Integrity Products MGV1004R47M-10 is an inductor with a 470nH inductance and a maximum current rating of 28.5A.

  • Inductance: 470nH
  • Current Rating: 28.5A
  • Package: Reel - TR
  • Supply and Demand Status: Limited
  • Quantity per Package: 500
  • ECCN: EAR99
  • Estimated Production Lead Time: 9 weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.4000
  • Other part numbers: 240-2822-6, 240-2822-2, 240-2822TR-ND, 240-2822-1, 240-2822DKR, 240-2822CT, 240-2822DKR-ND, 240-2822CT-ND, and 240-2822TR
