The LT3010MPMS8E-5#PBF is a high-voltage, micropower low dropout linear regulator (LDO) from Linear Technology, designed to provide precision and reliability for a wide array of applications. This component is particularly well-suited for automotive, industrial, and avionics markets where efficient power management is critical.

With an input voltage range of 3V to 80V, the LT3010MPMS8E-5#PBF is capable of delivering up to 50mA of continuous output current with a preset output voltage of 5V. Its low dropout voltage and low quiescent current make it an excellent choice for battery-powered systems, where extending battery life is paramount.

The device operates with a very low quiescent current of 30μA, which reduces to less than 3μA in shutdown mode, thereby conserving power when the device is not in active use. This feature is particularly beneficial for portable and remote applications where minimizing power consumption is necessary to prolong operation between charges.

Additionally, the LT3010MPMS8E-5#PBF offers several protective features that ensure the stability and safety of the system. It includes over-current and over-temperature protection, as well as reverse battery protection. These safeguards contribute to the device's robustness and reliability in demanding environments.

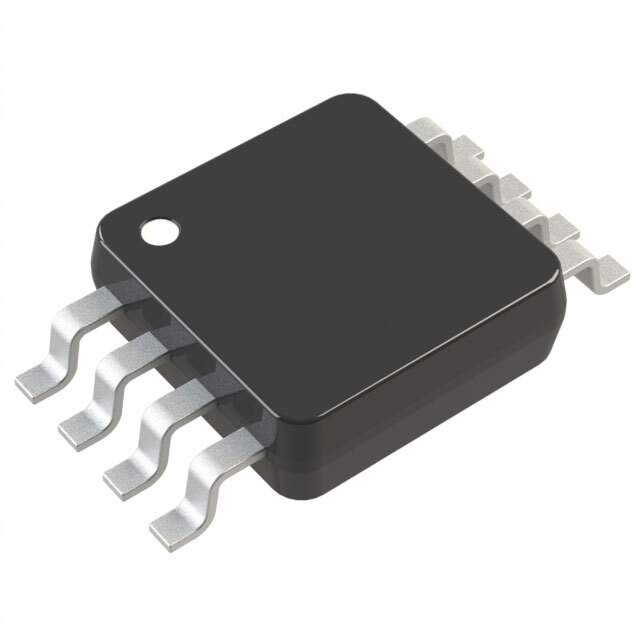

The regulator is packaged in an MSOP-8E, which is a small, surface-mount package that allows for efficient use of board space. This compact form factor, combined with the part's wide operating temperature range of -55°C to 125°C, makes the LT3010MPMS8E-5#PBF a versatile choice for space-constrained and temperature-sensitive applications.

In summary, the LT3010MPMS8E-5#PBF from Linear Technology is a high-performance, micropower solution that offers a combination of high-voltage capability, low power consumption, and robust protection features. It is an ideal choice for engineers looking to enhance the efficiency and reliability of their power management systems.
