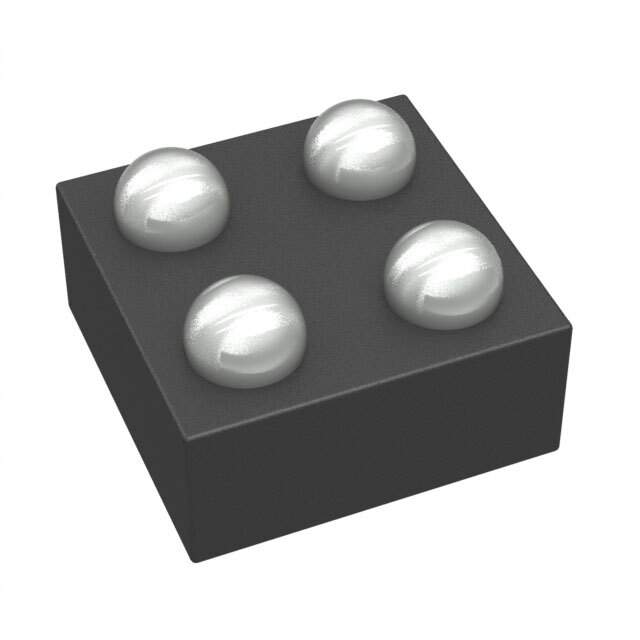

TLV70525YFPT

Part No TLV70525YFPT
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description 200-mA, Low IQ, Low-Noise, Low-Dropout Regulator
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 5.5V
Output Voltage 2.5V
Voltage Dropout (Maximum) 0.25V @ 200mA
Output Current 200mA
Operating Supply Current 55μA ~ 315μA
PSRR 80dB ~ 55dB (10kHz ~ 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 4-XFBGA, DSBGA
Manufacturer Package 4-DSBGA (0.8x0.8)
Win Source Part Number 1270571-TLV70525YFPT
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name TLV705
Introduction Date January 13, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TLV70525YFPT CAD Model

Description

The TLV70525YFPT is a state-of-the-art voltage regulator from Texas Instruments, designed to meet the needs of modern, power-sensitive applications. This high-performance component offers an ultra-low quiescent current, making it an ideal choice for battery-powered devices where energy efficiency is paramount.

Key Features

  • Output Voltage: The device provides a fixed output voltage of 2.5V, which is suitable for a broad range of low-voltage electronics, ensuring stable operation for sensitive circuits.
  • High Accuracy: With an output voltage accuracy of 2%, the TLV70525YFPT ensures precise voltage regulation, contributing to the reliability and performance of the end application.
  • Ultra-Low Quiescent Current: A standout feature of this regulator is its ultra-low Iq of just 1 µA, which minimizes power consumption when the device is in idle mode, extending battery life significantly.
  • Low-Dropout: The low dropout voltage allows the regulator to continue delivering a stable output even when the input-to-output voltage differential is minimal, making it highly efficient in a variety of conditions.
  • Thermal Shutdown and Overcurrent Protection: Built-in safety features such as thermal shutdown and overcurrent protection safeguard the device and the application from potential damage due to overheating or excessive current draw.
  • Small Package: The TLV70525YFPT comes in a compact 4-pin YFP (DSBGA) package, which is ideal for space-constrained applications.

Applications

The TLV70525YFPT is versatile and can be used in a variety of applications, including but not limited to:

  • Portable and battery-powered devices
  • Wireless sensors and IoT devices
  • Wearable technology
  • Smart meters
  • Medical devices

With its combination of low quiescent current, high accuracy, and robust protection features, the TLV70525YFPT from Texas Instruments is a reliable and efficient solution for designers looking to optimize their power management systems in compact and energy-critical applications.
