The LT3015EQ#PBF is a high-performance, low dropout negative voltage linear regulator designed and manufactured by Linear Technology. This regulator is specifically engineered to provide a stable and reliable power supply for a wide range of applications requiring a negative voltage source.

Key Features

• Output Voltage Range: The LT3015EQ#PBF offers an extensive output voltage range from -1.22V to -30V, making it highly versatile for various applications.
• Low Dropout Voltage: With a low dropout voltage of only 300mV at full load, this regulator maintains efficiency and ensures a consistent output even when the input voltage is close to the output voltage.
• High Output Current: Capable of delivering up to 1.5A of continuous output current, it meets the needs of power-hungry devices.
• Stable with Low ESR Capacitors: The LT3015EQ#PBF remains stable with low equivalent series resistance (ESR) capacitors, including ceramic capacitors, which are smaller, more reliable, and have a longer life span than their tantalum counterparts.
• Adjustable Current Limit: The built-in adjustable current limit provides protection against overcurrent conditions, enhancing the safety and longevity of both the regulator and the overall system.
• Thermal Protection: Integrated thermal protection automatically shuts down the regulator to prevent damage from overheating.

Applications

The LT3015EQ#PBF is ideal for a range of applications including, but not limited to:

• Power supplies for operational amplifiers
• Instrumentation
• Portable electronics
• Data conversion
• Automotive electronics
• Industrial equipment

Package and Quality

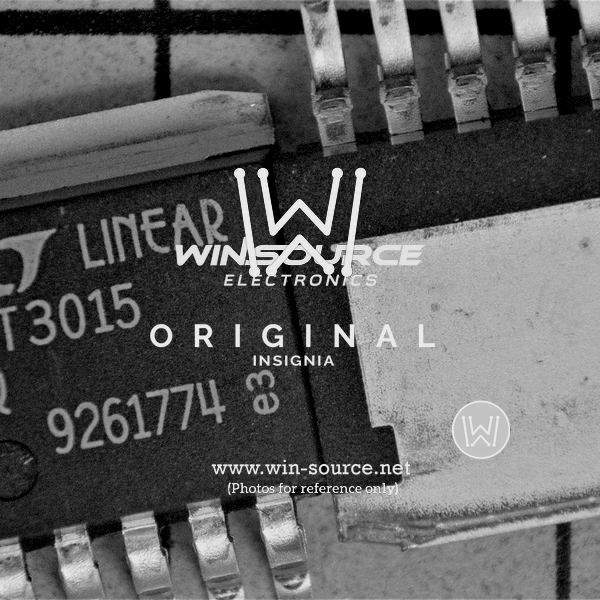

The LT3015EQ#PBF comes in a robust 5-lead DDPAK/TO-263 package, ensuring a compact footprint while allowing for adequate heat dissipation. It is also RoHS compliant, adhering to environmental standards and regulations.

With its combination of features, the LT3015EQ#PBF from Linear Technology represents a reliable and efficient solution for applications requiring a high-quality negative voltage regulator.
