Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 2
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 1.22V
Maximum Output Voltage 20V
Dropout Voltage-Max 0.45V @ 100mA, 0.45V @ 500mA
Output Current 100mA, 500mA
PSRR 65dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.22 V to 20 V
Voltage - Dropout (Typical) 0.3V @ 500mA, 0.3V @ 100mA
Mounting SMD (SMT)
Case / Package 12-DFN (4x3)
Win Source Part Number 087930-LT3024IDE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LT3024
Introduction Date February 06, 2004
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian LT3024IDE CAD Model

Description

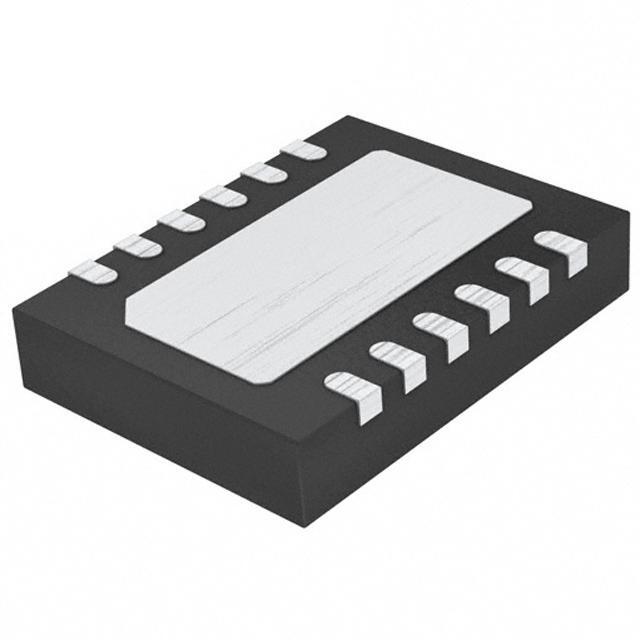

Introducing the LT3024IDE Dual Micropower LDO

The LT3024IDE is a high-performance, dual low dropout linear regulator (LDO) from Linear Technology, designed to deliver precision and reliability for a wide range of applications. This compact and efficient component is ideal for systems that require independent dual supplies with minimal power consumption.

Key Features:

  • Wide Input Voltage Range: The LT3024IDE operates efficiently with an input voltage range from 2.7V to 20V, making it highly versatile for various power supply configurations.
  • Dual Outputs: It features two independent LDOs with output voltages that are adjustable from 1.22V to 20V, providing flexibility for powering different circuit blocks.
  • Low Dropout Voltage: The device boasts a low dropout voltage of only 300mV at full load, ensuring efficient operation even when the input voltage is close to the output voltage.
  • Low Quiescent Current: With a quiescent current of just 30µA per LDO (operating) and
  • Stable with Low-ESR Capacitors: It is stable with ceramic capacitors, which reduces the required board space and component cost.
  • Thermal Protection: The device includes internal thermal limit protection to safeguard the regulator and your application from overheating.
  • Robust Packaging: The LT3024IDE is available in a 12-lead low-profile (0.75mm) DFN (4mm x 3mm) package, which is suitable for space-constrained applications.

Applications:

The LT3024IDE is an excellent choice for a variety of applications, including:

  • Portable and battery-powered equipment
  • Automotive power supplies
  • Industrial supplies
  • Medical devices
  • Telecommunications infrastructure

With its dual outputs and micropower operation, the LT3024IDE from Linear Technology is a reliable and efficient solution for designers looking to optimize power management in their next project. Its low quiescent current and wide input voltage range, coupled with the ability to use low-ESR capacitors, make it an adaptable and cost-effective choice for a multitude of electronic applications.
