Linear Technology's LT3086EFE#PBF: A Robust LDO Voltage Regulator

The LT3086EFE#PBF is a high-performance low dropout (LDO) linear voltage regulator from Linear Technology, an Analog Devices brand. This component is designed to provide precision voltage regulation with a wide input voltage range, making it suitable for a variety of applications, including industrial, automotive, and communications systems. The LT3086EFE#PBF stands out for its robust design and flexible output capabilities.

With an input voltage range of 1.8V to 40V, the LT3086EFE#PBF can deliver up to 2.1A of continuous output current. This makes it an excellent choice for systems that require a stable and reliable power supply. The device offers an adjustable output voltage from 0.8V to 32V, which can be set with a single external resistor. This level of versatility ensures that the LT3086EFE#PBF can be easily integrated into a wide range of circuit designs.

One of the key features of the LT3086EFE#PBF is its extended safe operating area (SOA) protection. This feature provides enhanced protection against high input-to-output voltage differentials, ensuring the regulator operates safely even under stressful conditions. Additionally, the LT3086EFE#PBF includes thermal shutdown and current limiting, which further contribute to the safety and reliability of the device.

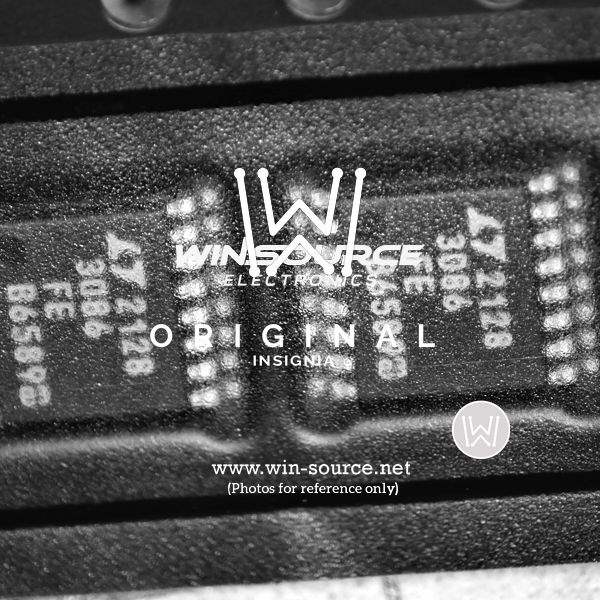

The LT3086EFE#PBF is packaged in a thermally efficient TSSOP-16 exposed pad package, which aids in heat dissipation. This packaging, combined with a low quiescent current of only 75μA, makes the LT3086EFE#PBF an energy-efficient solution for power management tasks.

In summary, the LT3086EFE#PBF from Linear Technology is a versatile and reliable LDO voltage regulator that offers excellent performance for a wide range of applications. Its robust protection features, flexible output voltage settings, and efficient thermal design make it a top choice for designers looking to ensure the stability and longevity of their power supply circuits.
