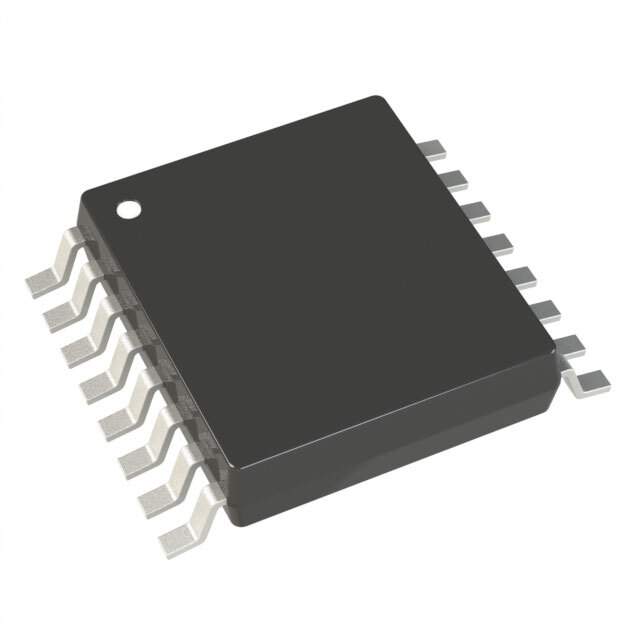

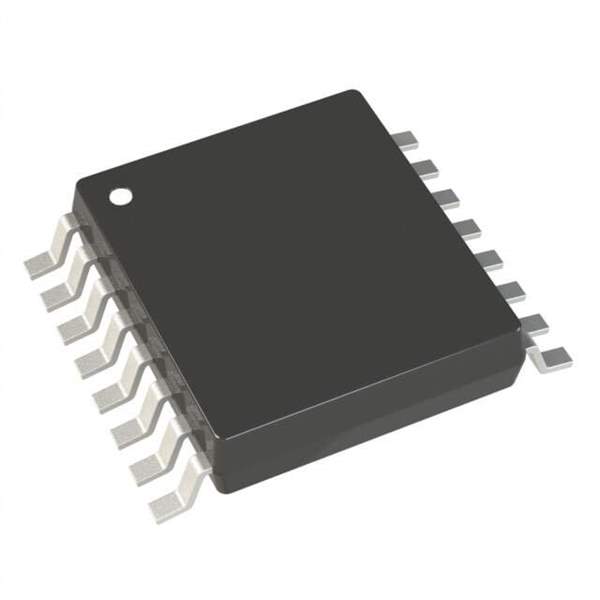

Linear Technology LT3506EFE#TRPBF - High Efficiency, Quad Output, Step-Down Switching Regulator

The LT3506EFE#TRPBF is a high-performance, quad output, monolithic switching regulator designed to deliver efficient power management for a wide range of applications. Manufactured by Linear Technology, a leader in analog integrated circuits, this device offers a compact and reliable solution for systems requiring multiple low voltage outputs from a higher voltage input.

This versatile component integrates four independent step-down regulators in a single package, each capable of driving a 1.1A output current with excellent line and load regulation. The regulators operate with a switching frequency of 2.4MHz, allowing the use of small surface mount inductors and capacitors to minimize the size and enhance the thermal performance of the power supply design.

The LT3506EFE#TRPBF features a wide input voltage range from 3.6V to 25V, making it suitable for applications powered from 5V, 12V rails, or battery-operated devices. The device maintains a high efficiency across a broad range of output currents, which is vital for portable and battery-powered equipment where power conservation is critical.

Each channel has independent enable pins, which provides flexibility in controlling the power sequencing for various system requirements. The device also includes internal soft-start to limit inrush current during startup, further enhancing system reliability. Additionally, the LT3506EFE#TRPBF offers overtemperature and overcurrent protection, safeguarding the device and the system under adverse conditions.

Enclosed in a thermally efficient 20-lead TSSOP package with an exposed pad for improved thermal dissipation, the LT3506EFE#TRPBF is designed to operate over a wide temperature range, making it suitable for industrial and automotive applications. Its robust design and comprehensive feature set ensure performance and reliability for a multitude of power conversion applications such as distributed power systems, automotive electronics, industrial supplies, and telecommunication equipment.

With its integration of four step-down regulators, high efficiency, and a comprehensive set of protection features, the LT3506EFE#TRPBF from Linear Technology stands as an excellent choice for designers looking to optimize their power management solutions.
