Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 5/3
Duplex Full
Receiver Hysteresis 400mV
Data Rate 120KBd
Supply Voltage - Operating 4.5 V to 5 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)

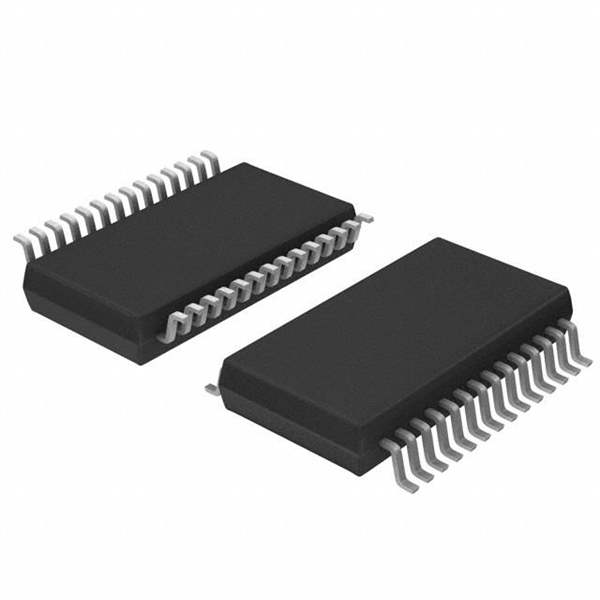

Case / Package 28-SSOP
Win Source Part Number 072451-LTC1338CG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LTC1338CG CAD Model

Description

The LTC1338CG is a feature-packed RS232 transceiver from Linear Technology, designed to meet the rigorous demands of advanced serial communication systems. This integrated circuit is crafted to provide reliable full-duplex data transmission with a versatile range of applications in mind, from industrial control to data acquisition systems.

Key Features:

  • Integrated Charge Pump: The LTC1338CG comes with an on-chip charge pump circuit that generates the necessary RS232 voltage levels (+/-10V) from a single 5V supply, eliminating the need for external power supplies and simplifying design.
  • Low Power Consumption: Designed for power-sensitive applications, it operates in a low power mode, making it ideal for battery-operated and portable devices.
  • Enhanced ESD Protection: With built-in electrostatic discharge protection, the LTC1338CG can withstand up to 15kV, ensuring robustness and reliability in harsh environments.
  • Flexible Data Rate: It supports data rates up to 120kbps, providing the versatility needed for a wide range of communication protocols and data-intensive applications.
  • Multiple Drivers and Receivers: The device includes two drivers and two receivers, allowing for the connection of multiple peripherals and the management of various data streams simultaneously.

Applications:

  • Industrial Control Systems
  • Data Acquisition Systems
  • Portable and Battery-Powered Equipment
  • Point of Sale (POS) Terminals
  • Networking Equipment

The LTC1338CG is housed in a 24-pin SSOP package, offering a compact footprint suitable for space-constrained applications. Its temperature range of 0°C to 70°C ensures stable operation across various environmental conditions. With its combination of performance, integration, and reliability, the LTC1338CG represents a superior solution for designers seeking to implement RS232 communications with minimal external components and robust protection features.
