Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel, P-Channel MOSFET
Supply Voltage - Operating 4.5 V to 18 V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 6A, 6A
Input Type Non-Inverting
Rise and Fall Time 25ns, 25ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 8-PDIP
Win Source Part Number 038217-TC4420EPA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TC4420EPA CAD Model

Description

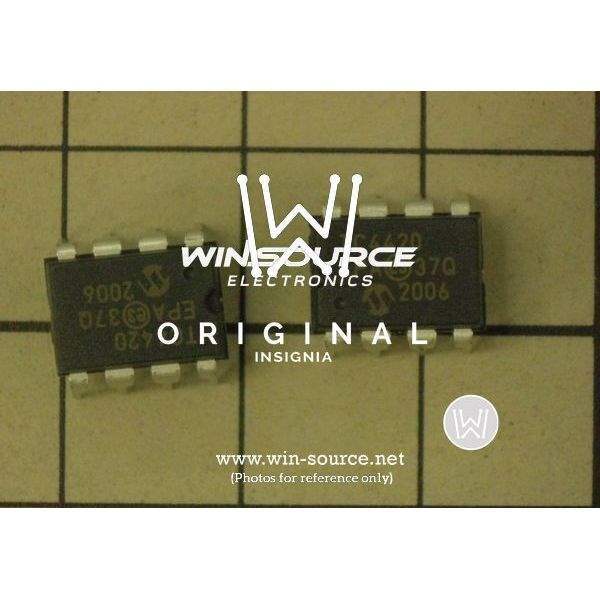

Microchip Technology's TC4420EPA MOSFET Driver

The TC4420EPA is a robust, high-speed power MOSFET driver fabricated by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. Designed to convert TTL or CMOS input signals to a high-current output with minimum propagation delay, this driver is capable of delivering a peak output current of 6A, making it an ideal choice for driving large capacitive loads with high efficiency.

Key Features

  • High Peak Output Current: Capable of delivering up to 6A, the TC4420EPA is well-suited for driving large power MOSFETs and IGBTs.
  • Wide Input Supply Voltage Range: Operating from 4.5V to 18V, this driver is versatile and can accommodate various application requirements.
  • Low Propagation Delay: The device features a propagation delay typically under 55ns, ensuring swift response times for critical applications.
  • High Peak Pulse Current: Offers a high peak pulse current, which is essential for quickly charging and discharging the gate capacitance of MOSFETs.
  • Latch-Up Protected: Withstands up to 1.5A of reverse output current, providing robust protection against latch-up.
  • Matched Rise and Fall Times: The TC4420EPA provides matched rise and fall times, reducing switching losses and improving overall efficiency.
  • Input Logic Level Flexibility: Compatible with standard TTL and CMOS levels, this driver integrates seamlessly into various digital systems.

Applications

The TC4420EPA is versatile and can be used in a multitude of applications, including but not limited to:

  • Switch Mode Power Supplies (SMPS)
  • DC/DC Converters
  • Motor Control Circuits
  • Class D Switching Amplifiers
  • Pulse Transformer Drivers
  • Line Drivers

Encased in a durable 8-pin PDIP (Plastic Dual In-line Package), the TC4420EPA ensures a reliable connection to your circuit board. Its robust design and comprehensive protection features make it an excellent choice for high-performance, high-speed switching applications. Whether you're designing a new power system or upgrading an existing one, the TC4420EPA from Microchip Technology provides the power and reliability needed to drive your MOSFETs efficiently.
