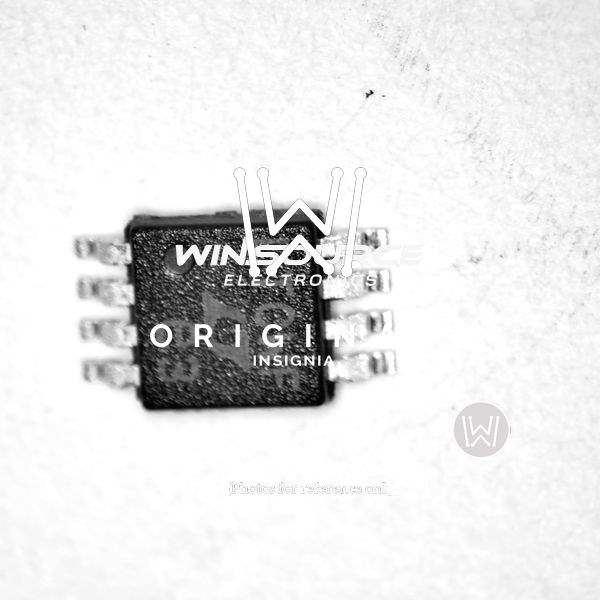

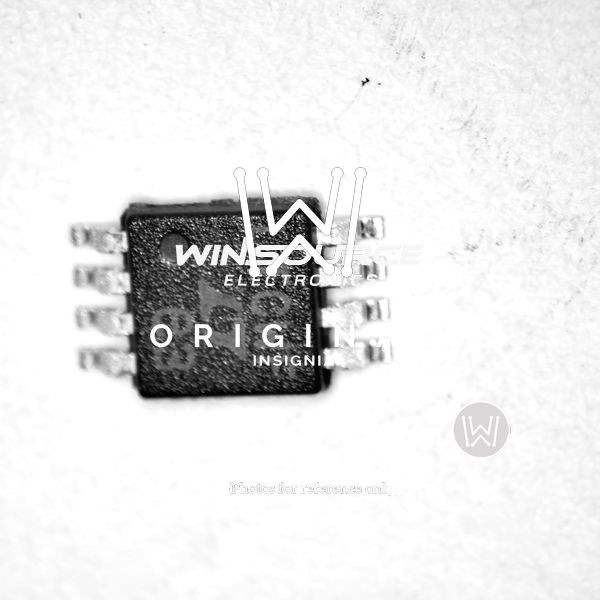

LTC2851IMS8 - RS485/RS422 Transceiver

The LTC2851IMS8 is a high-performance RS485/RS422 transceiver from Linear Technology, designed to provide robust data communication in noisy industrial environments and over long cable runs. This transceiver is capable of achieving up to 20Mbps data rates while maintaining a high level of signal integrity and reliability. The LTC2851IMS8 comes in a compact MSOP-8 package, making it ideal for space-constrained applications.

Key Features

• High Speed: Supports data rates up to 20Mbps, suitable for high-speed data communication requirements.
• Enhanced ESD Protection: Integrated protection against electrostatic discharge events, withstanding up to ±15kV on the transceiver's bus pins.
• Extended Common Mode Range: Operates on a wide common mode range of -7V to 12V, enhancing the transceiver's capability to handle common mode noise and ground potential differences.
• Low Power Shutdown: Features a low power shutdown mode, which significantly reduces power consumption when the transceiver is not in use.
• Thermal Shutdown Protection: Built-in thermal shutdown circuitry protects the device from damage due to excessive temperature.
• Duplex Configuration: Can be configured for full-duplex or half-duplex operation, providing versatility for different communication protocols and network topologies.
• Fail-Safe Receiver: The receiver has a fail-safe feature that ensures a logic-high output if the inputs are open, shorted, or idle.

Applications

The LTC2851IMS8 is suitable for a variety of applications where reliable, high-speed data transmission is required. Typical applications include:

• Industrial control systems
• Factory automation
• Building automation and HVAC systems
• Networked security systems
• Point-of-sale (POS) equipment
• Data acquisition systems

With its robust design, the LTC2851IMS8 ensures that communication remains consistent and error-free, even in the harshest of industrial environments. Whether integrating into new designs or upgrading existing systems, the LTC2851IMS8 provides a reliable solution for RS485/RS422 communication needs.
