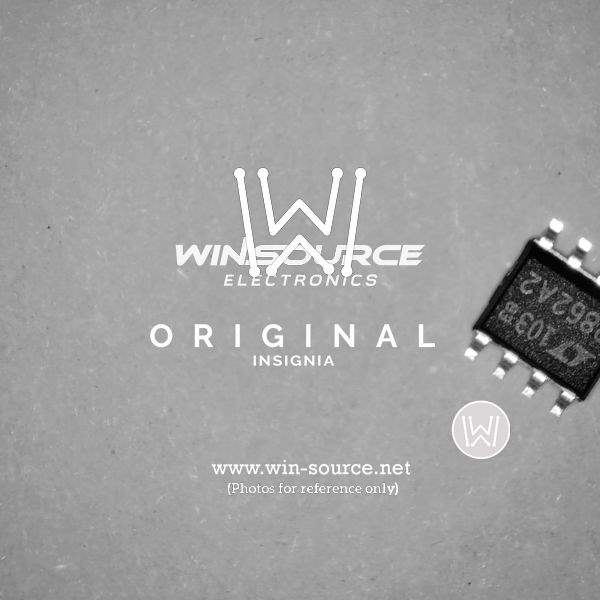

LTC2862IS8-2#PBF - Robust RS485/RS422 Transceiver from Linear Technology

The LTC2862IS8-2#PBF is a high-performance RS485/RS422 transceiver from Linear Technology, designed to provide reliable communication in harsh industrial environments. This transceiver is part of a family of robust transceivers that combine advanced features to ensure signal integrity and error-free data transmission over extended distances and in electrically noisy surroundings.

Key Features:

• High Speed: Capable of data rates up to 20Mbps, the LTC2862IS8-2#PBF is suitable for high-speed data communication applications.
• Extended Common-Mode Range: With an impressive common-mode range of ±25V, this transceiver ensures reliable communication in the presence of ground loop voltages and common-mode noise.
• Electrostatic Discharge (ESD) Protection: It features high ESD protection up to ±15kV for both human body model and IEC61000-4-2 air discharge, safeguarding the device against transient voltage spikes.
• Thermal Shutdown: Integrated thermal shutdown protection prevents damage from overheating, ensuring long-term reliability and stability.
• Failsafe Receiver: The failsafe receiver guarantees a high logic level output if the inputs are open, shorted, or idle, providing additional robustness in fault conditions.

Applications:

The LTC2862IS8-2#PBF is ideally suited for various industrial applications that require robust and reliable data communication, such as:

• Industrial control systems
• Factory automation
• Building automation and HVAC systems
• Networked security systems
• Automotive networks

Package and Temperature Range:

The device comes in an 8-lead SOIC package that is compact and suitable for space-constrained applications. It operates over a wide temperature range from -40°C to 125°C, making it reliable in extreme temperature environments.

Conclusion:

With its robust feature set, the LTC2862IS8-2#PBF from Linear Technology stands out as a superior choice for designers looking to implement RS485/RS422 communication interfaces in industrial and automotive environments where reliability and data integrity are paramount.
