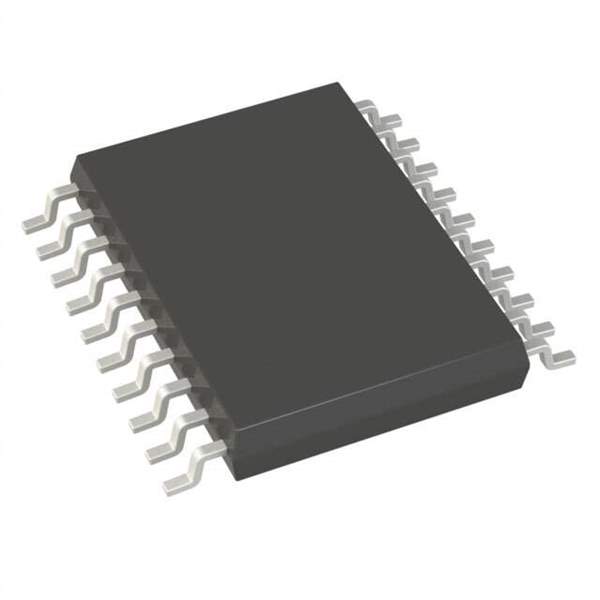

LTC3417EFE#TRPBF

Part No LTC3417EFE#TRPBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ DL SYNC 20TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 2
Minimum Input Voltage 2.25V
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 5V
Output Current 800mA, 1.4A
Frequency - Switching 1.5MHz, 600kHz to 4MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-TSSOP-EP
Win Source Part Number 1062573-LTC3417EFE#TRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTC3417EFE#TRPBF CAD Model

Description

Linear Technology's LTC3417EFE#TRPBF Dual Synchronous Step-Down DC/DC Converter

The LTC3417EFE#TRPBF is a high-performance, dual synchronous step-down DC/DC converter integrated into a single package, designed by Linear Technology for precision voltage regulation in a variety of applications. This advanced power management IC is capable of delivering up to 800mA of continuous output current per channel at voltages as low as 0.8V, making it an ideal solution for portable devices and other systems requiring efficient power distribution.

The device operates over a wide input voltage range from 2.25V to 5.5V, which allows it to accommodate a variety of power sources, including single-cell Li-Ion batteries, multi-cell alkaline batteries, and regulated 5V supplies. Each of the two channels is independently adjustable, giving designers the flexibility to set different output voltages for various subsystems within their design.

One of the key features of the LTC3417EFE#TRPBF is its high efficiency, which is achieved through the use of low RDS(ON) internal switches and a constant frequency, current mode architecture. The device also includes a selectable Burst Mode® operation, which further enhances efficiency at light loads by reducing the quiescent current. This is especially beneficial for battery-powered applications, as it extends the battery life by minimizing power draw when the system is in standby or operating under light load conditions.

The LTC3417EFE#TRPBF is designed with protection features to ensure reliable operation under adverse conditions. These include over-temperature protection, over-current protection, and a power good status output for each channel, which provides system monitoring capabilities. The device is offered in a thermally enhanced 24-lead TSSOP package, which is designed to handle high power levels while maintaining a compact footprint.

With its precise voltage regulation, high efficiency, and robust protection features, the LTC3417EFE#TRPBF is an excellent choice for engineers looking to optimize power management in their next project. Whether it's for portable consumer electronics, industrial instruments, or automotive systems, this dual synchronous step-down converter from Linear Technology stands out for its performance and reliability.
